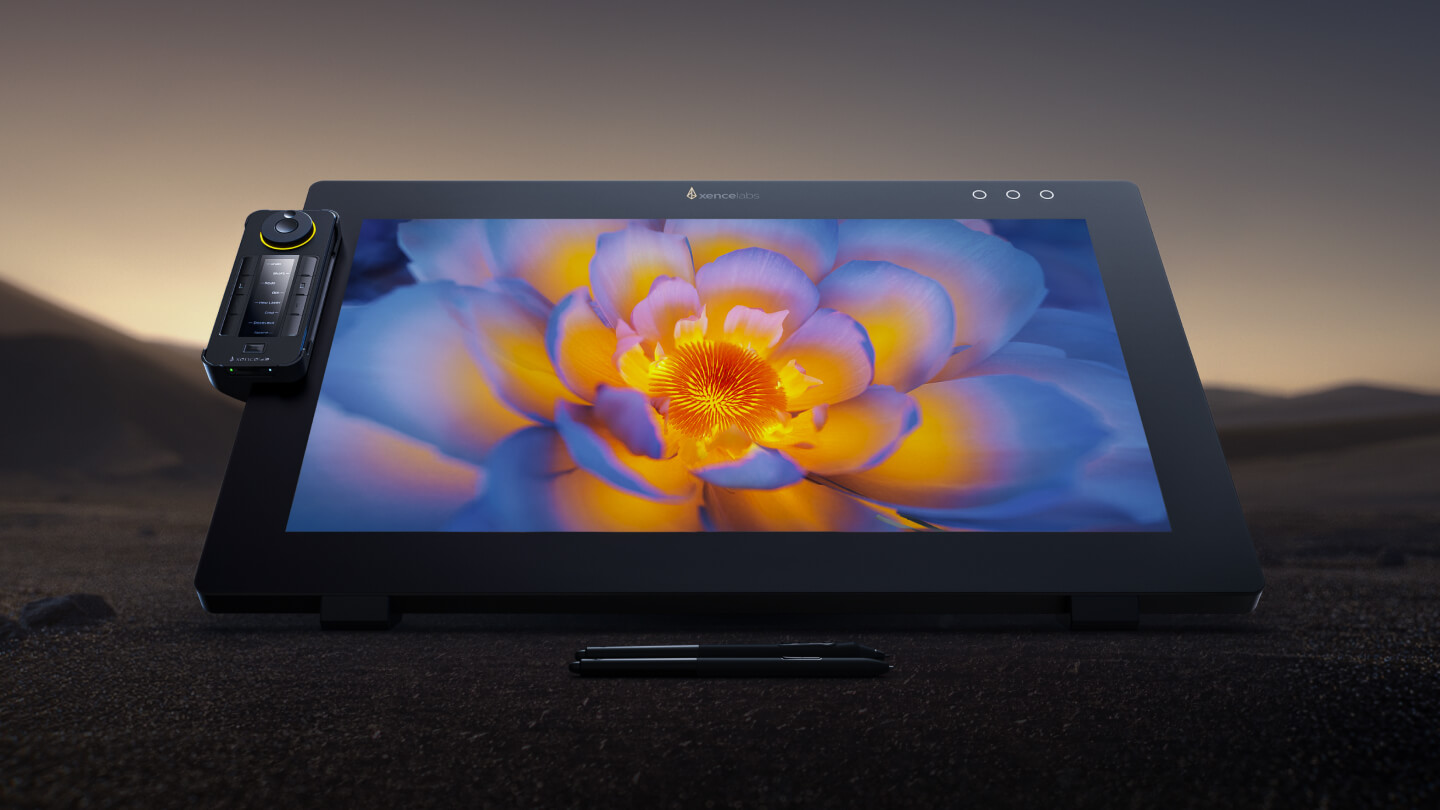

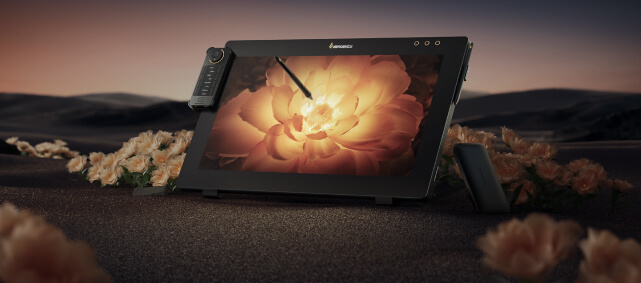

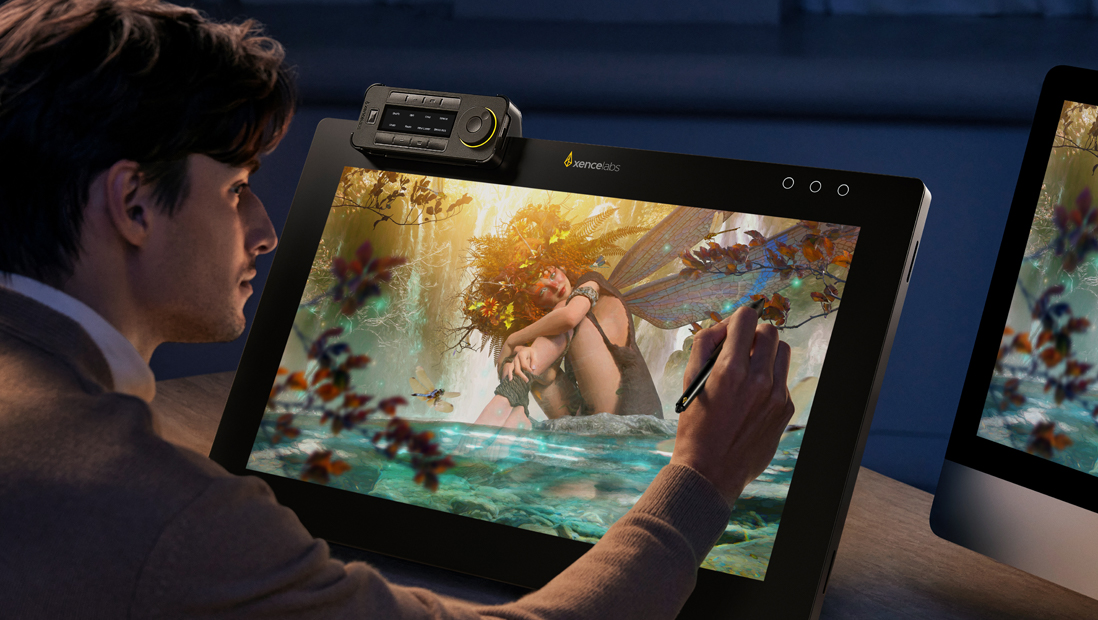

Xencelabs Pen Display 24

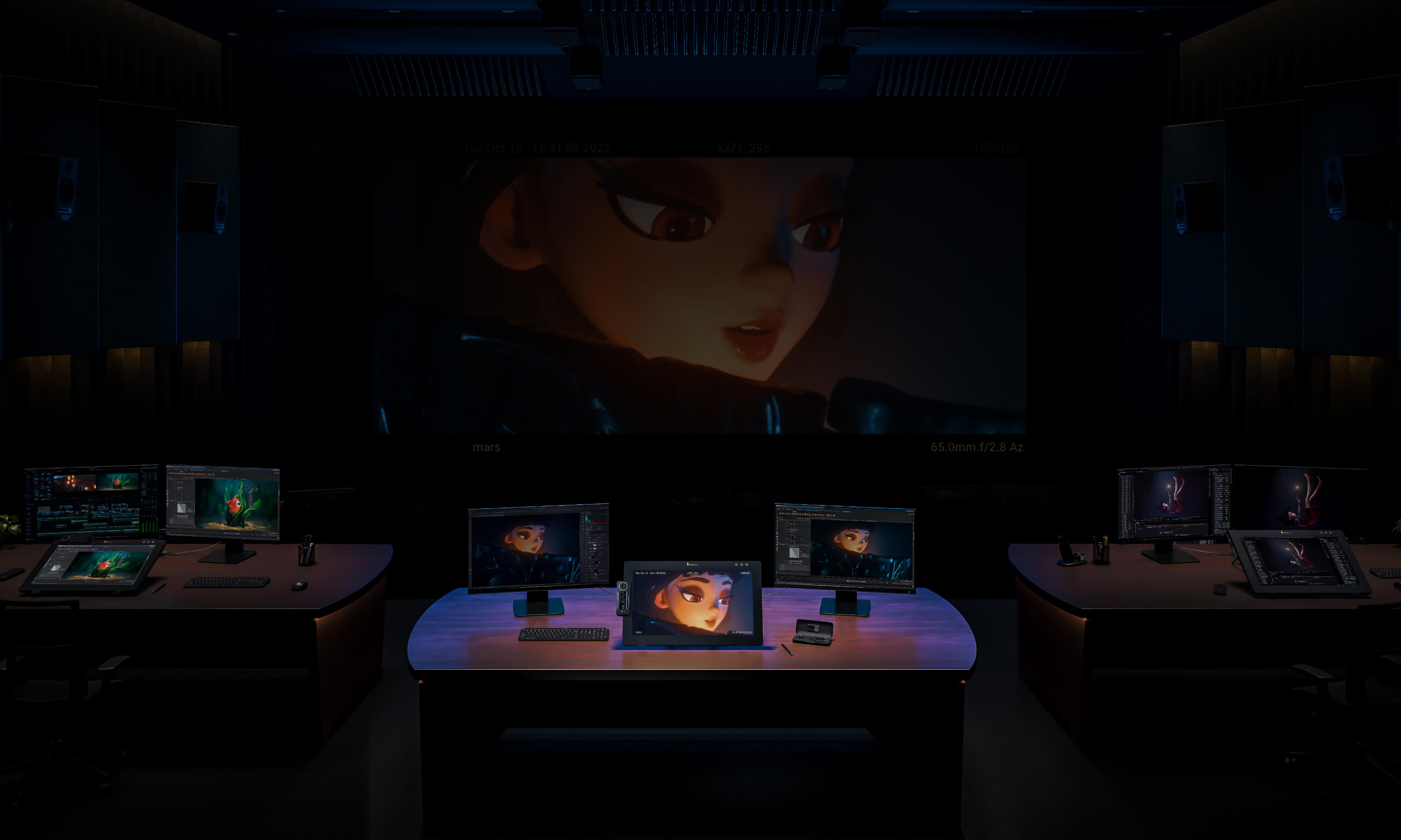

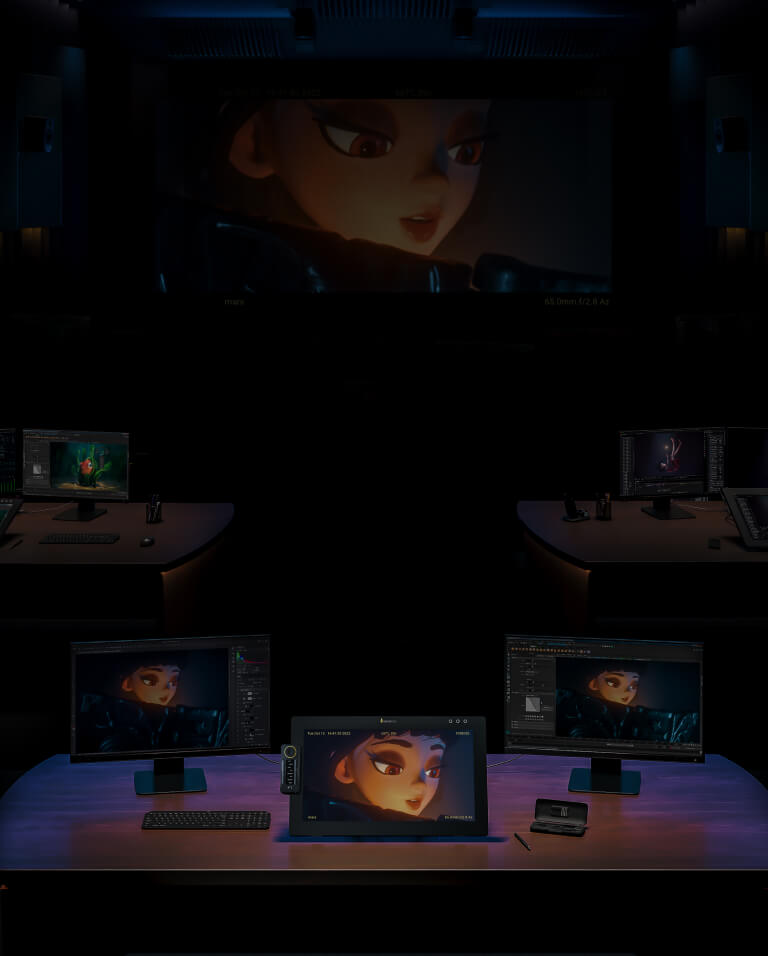

A New Choice for Studio Creatives

Studio Quality Drawing Experience | 1.07 Billion Colors | Pantone® & SkinTone Validated | 4K UHD

Exceptional Glare
Reduction

Pantone® & SkinTone™
Validated

Ergonomic & Adaptable

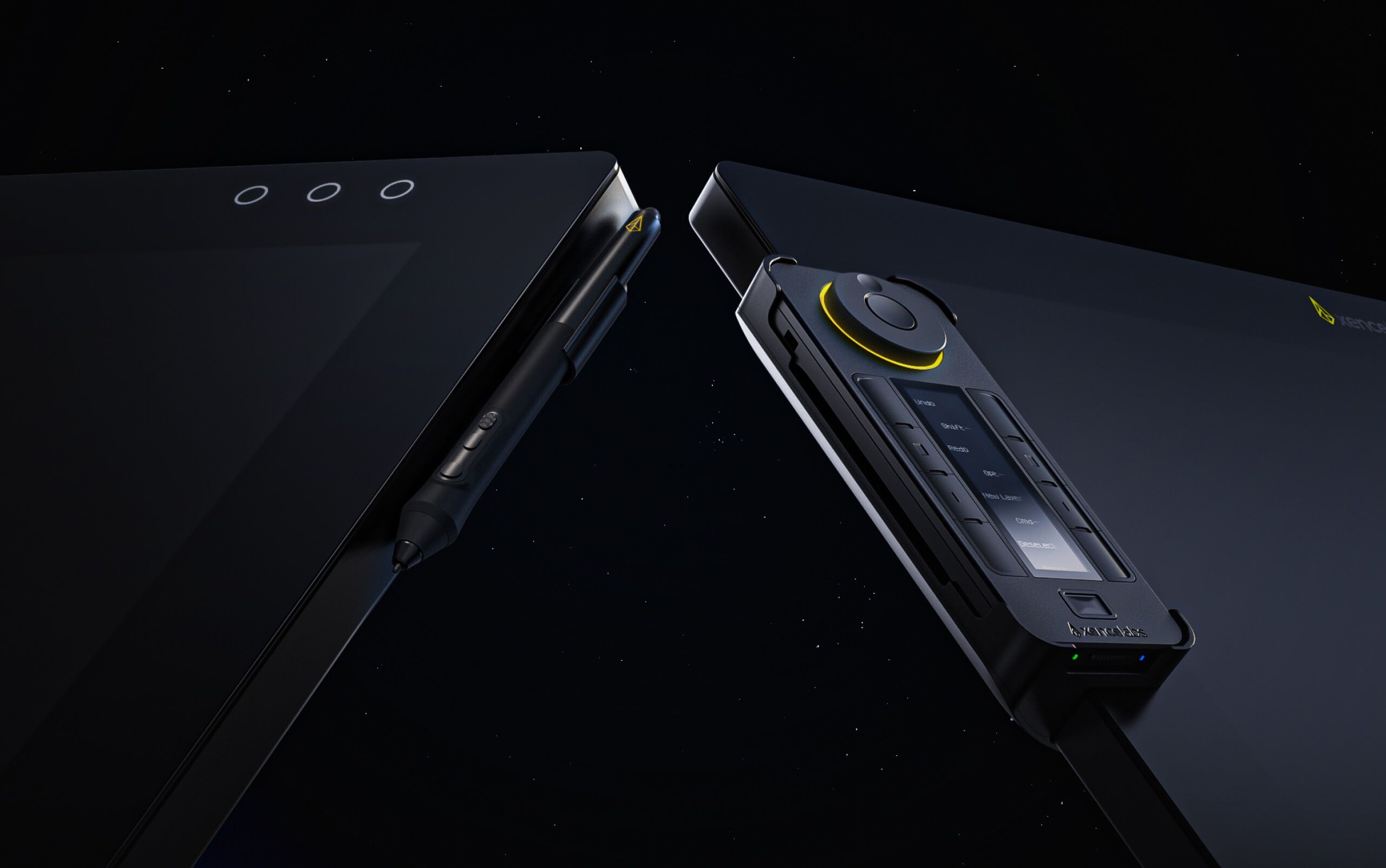

Quick Keys
with OLED

Edge-to-Edge Drawing Surface

Tilt Stand
(lncluded)

VESA
(100X100mm)

Silent & Fanless

Kensington®
Security Slot

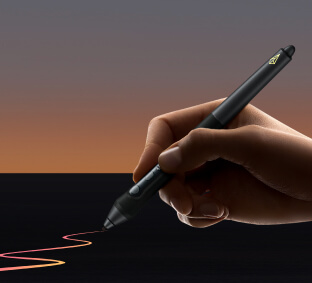

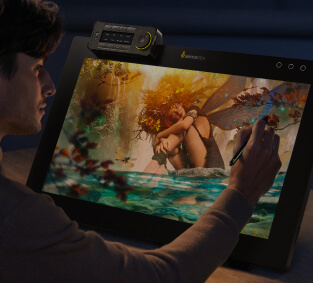

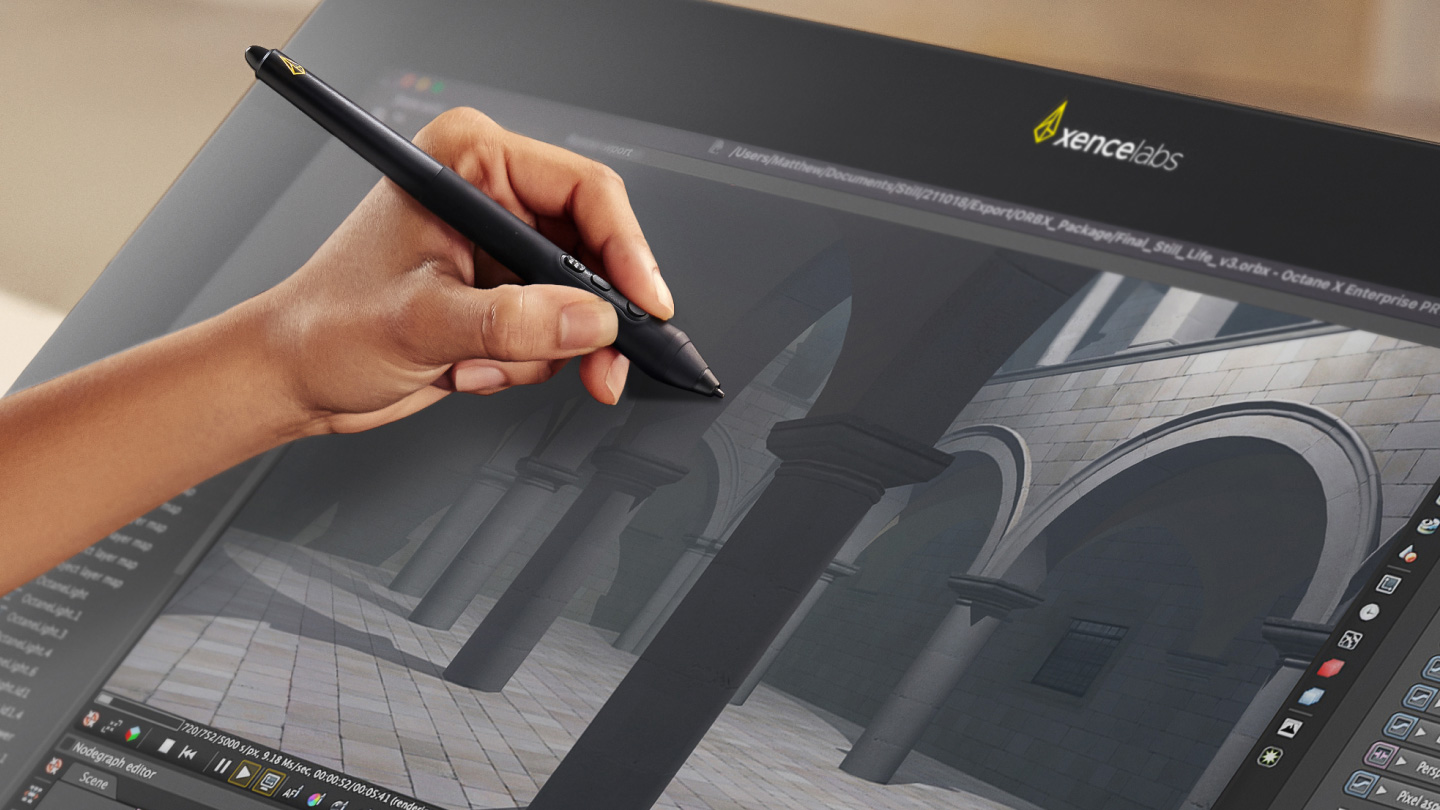

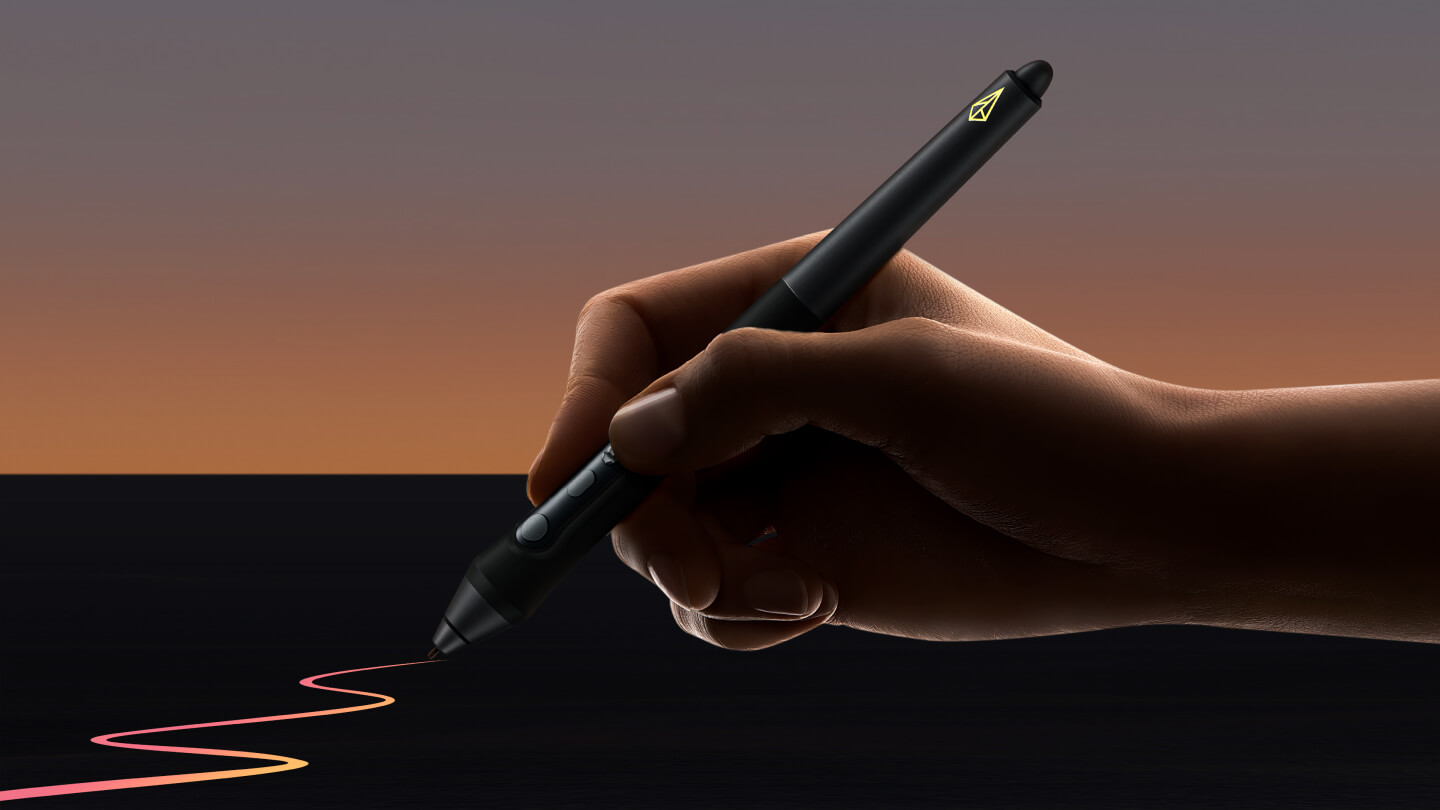

Natural Drawing Experience

Finely Tuned Pressure
Curves

DCI-P3

93%

Adobe RGB

99%

Brilliant Color in 4K

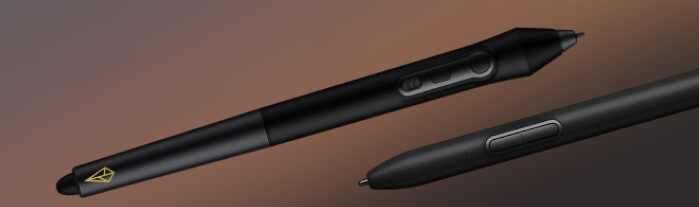

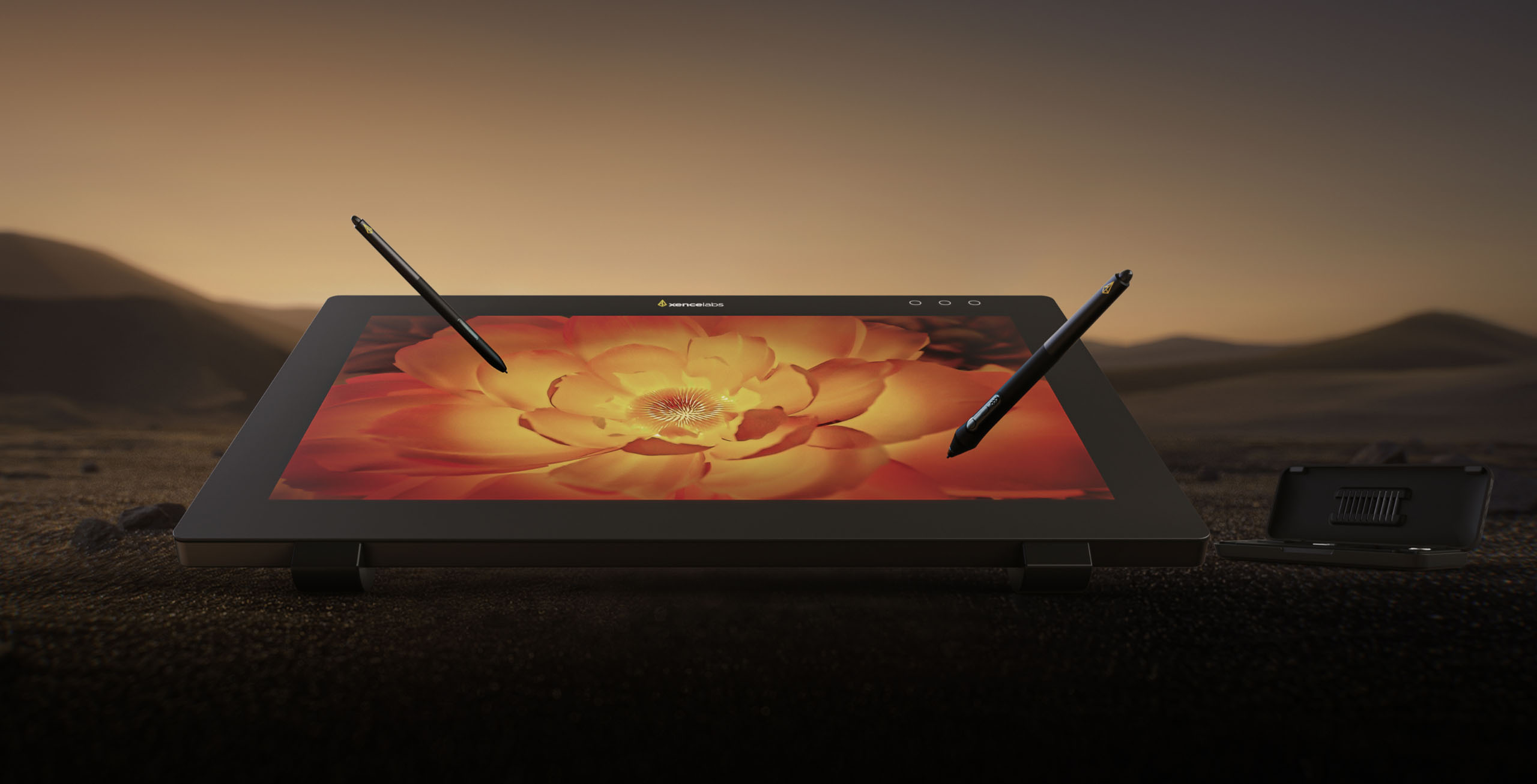

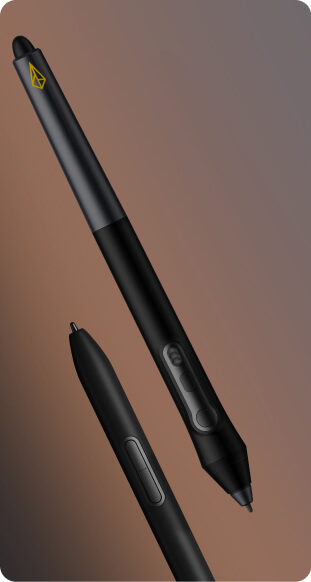

Two Pens:
3 Button Pen v2 + Eraser &
Thin Pen v2 + Eraser

Tilt Stand
(lncluded)

VESA
(100X100mm)

Silent & Fanless

Kensington®
Security Slot

Mac OS

Windows

Linux

Feature Rich Driver

Two Pens:
3 Button Pen v2 + Eraser &
Thin Pen v2 + Eraser

Watch Video

Create What You Dream

Natural Drawing Experience
Finely Tuned Pressure Curves
Stunning Image Quality
Ergonomic & Adaptable
Brilliant Color
Feature Rich Driver
01 / 03
01 / 03

Super-AG Etching

For exceptional glare reduction and a natural drawing experience.

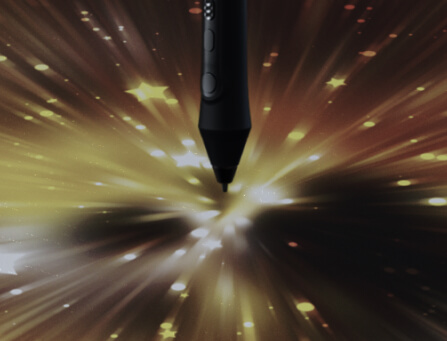

3g Initial Activation

Brings your drawing to life by sensing the lightest stroke.

Finely Tuned Pressure Curves

Highly responsive with stroke to stroke accuracy.

Stunning Image Quality

01 / 03
01 / 03

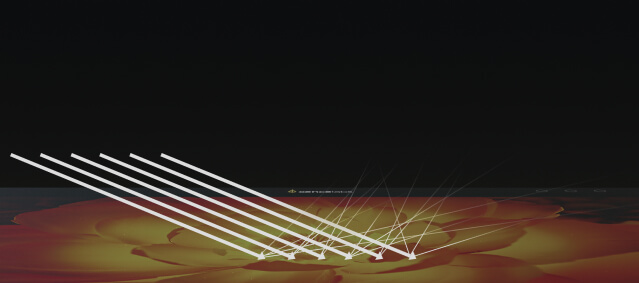

Exceptional Glare Reduction

Decreasing reflected light, the finely etched surface sharpens optical acuity.



Optically Bonded

Reduces parallax or perceived visual gap between the pen nib and the cursor.

Beautiful Surface

The (AF) Anti-Fingerprint coating reduces fingerprints and allows your hand to glide across the surface.

01 / 02
01 / 02

Incredible Color Space Coverage

DCI-P3

93%

Adobe RGB

99%

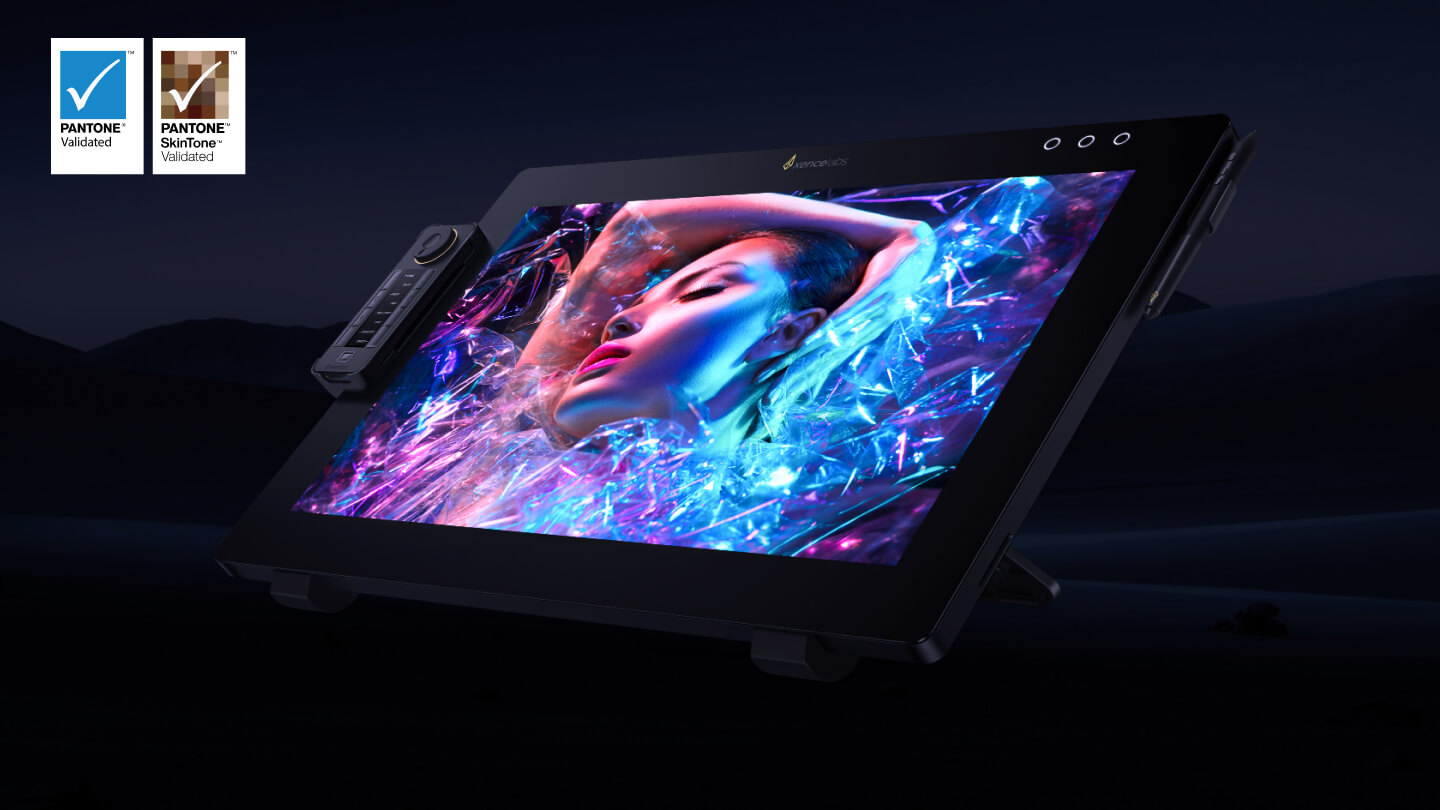

Pantone® &  SkinTone Validated

Xencelabs Pen Display 24 can accurately reproduce a full spectrum of Pantone colors and a diverse range of skin tones.

01 / 02
01 / 02

Customizable Workflow

A Delicate Balance

A small profile frees up desk space, while the thin bezel provides room to rest your hand.

Programmable Device Control Buttons

Colors of buttons can be changed per application.

01 / 02
01 / 02

VESA Mount Ready

Standard 100 x 100 mm VESA Mount
(No adaptor required)

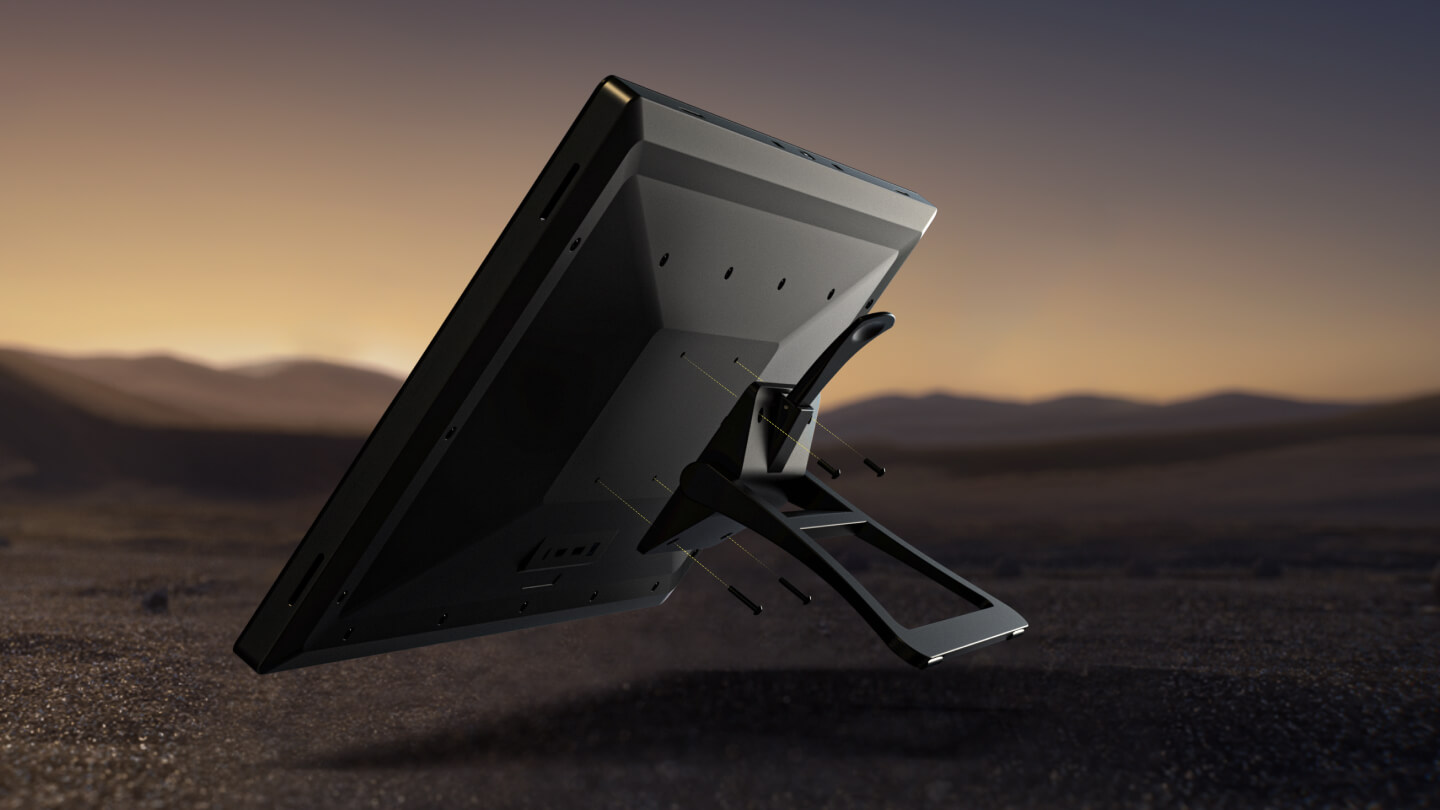

Tilt Stand Included

One hand adjustable stand. (16° to 72°)

Increased Productivity

01 / 04
01 / 04

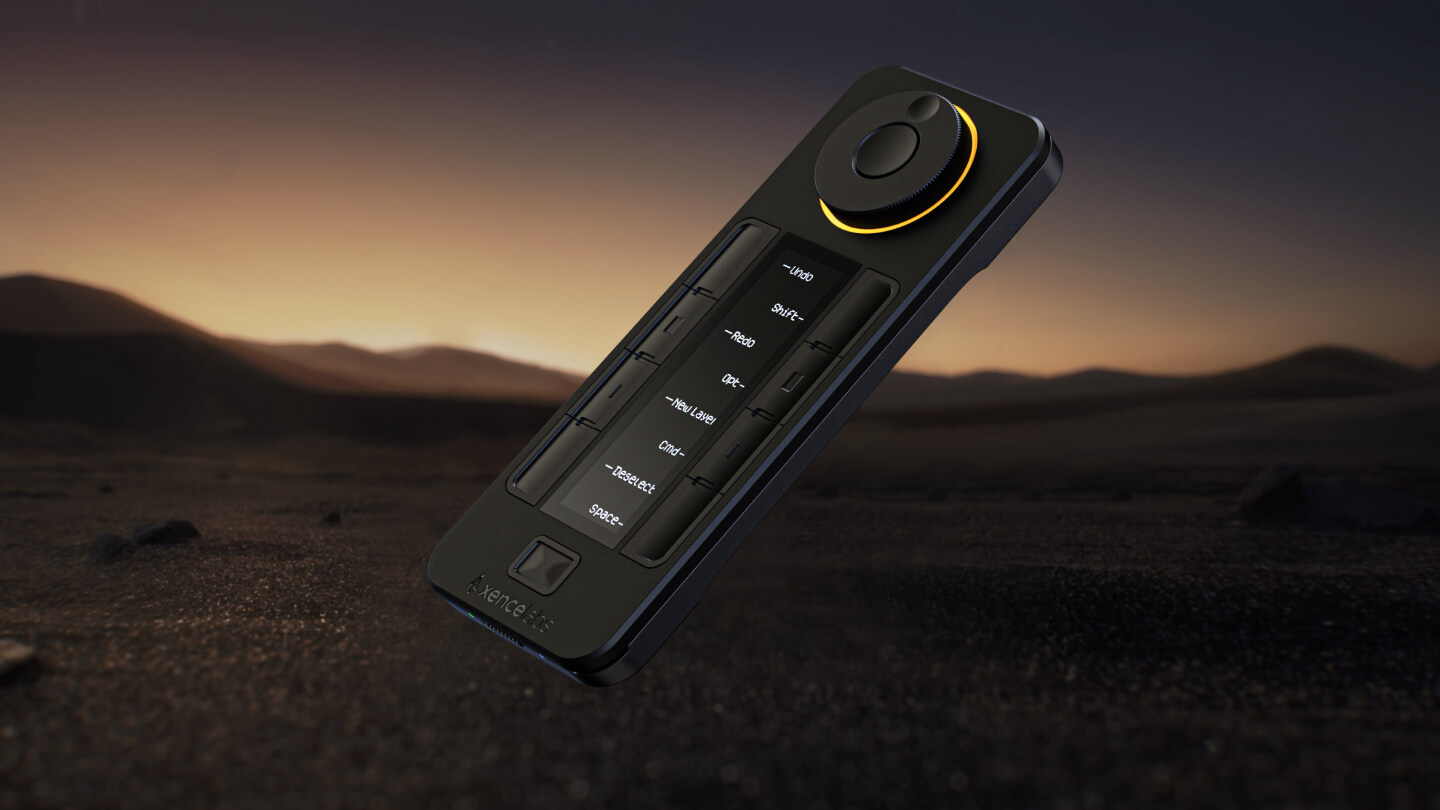

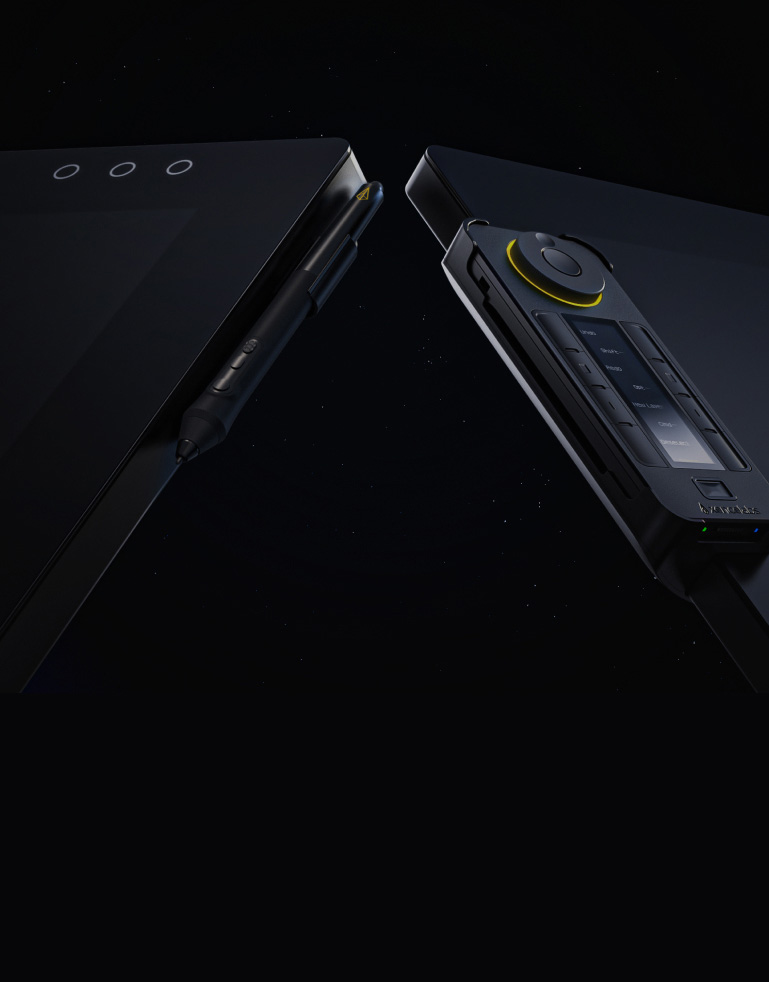

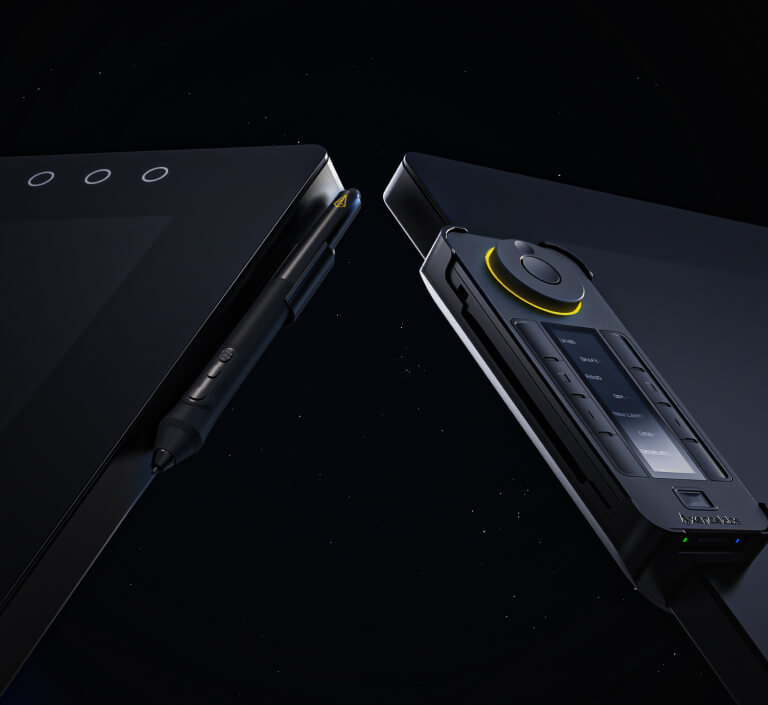

The Keys to Success

This efficiency powerhouse offers customizable 8 buttons x 5 sets, equaling 40 shortcuts per application, plus a physical dial and OLED display.

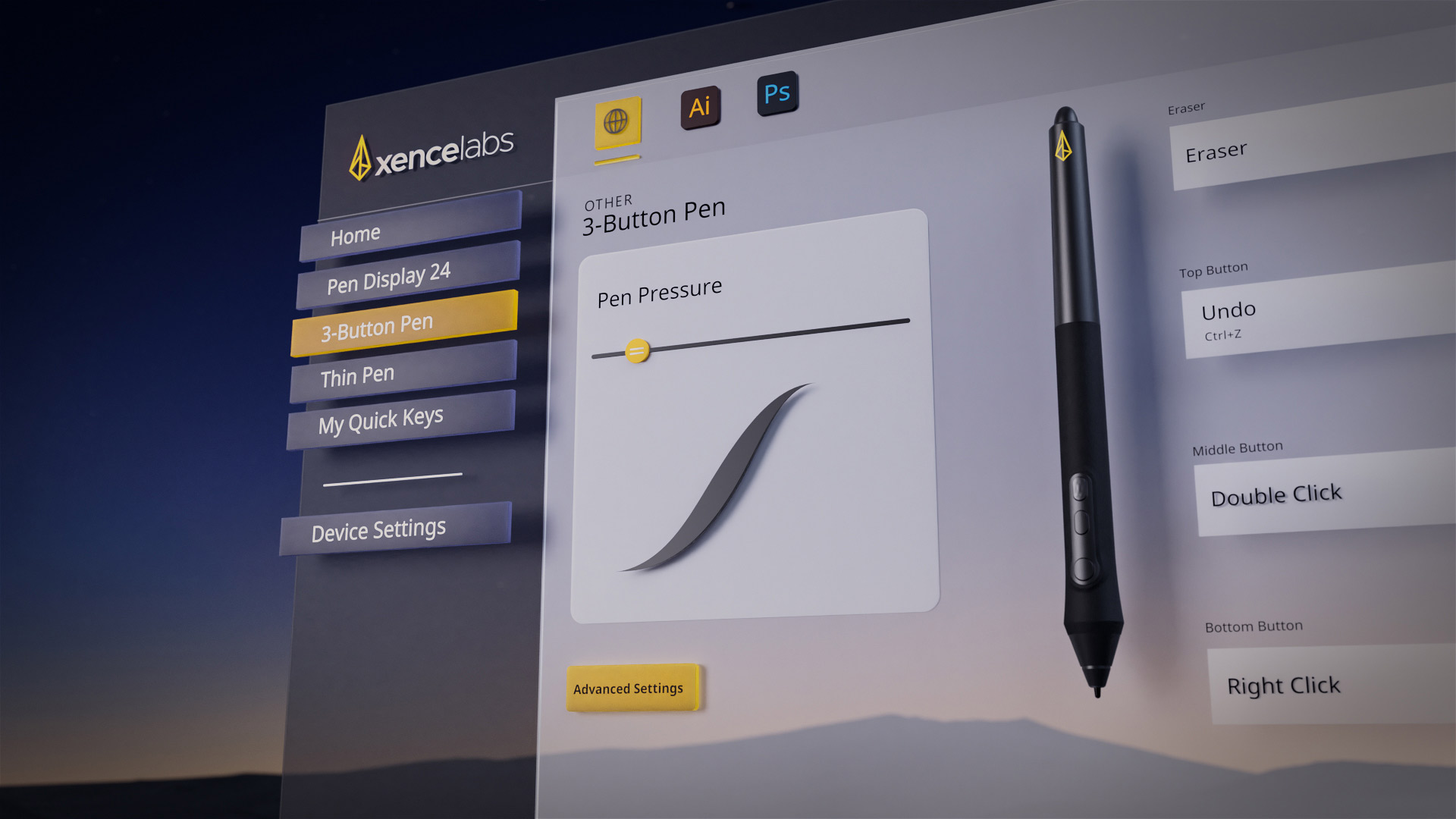

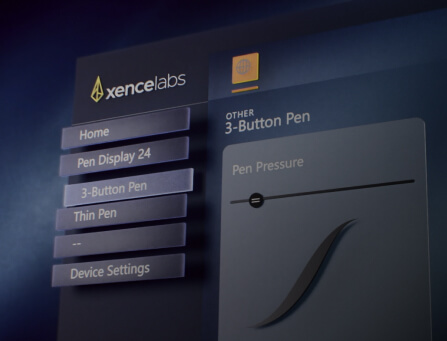

Feature Rich Driver

Set up your display, Quick Keys, and pens according to your preference.

Full Access

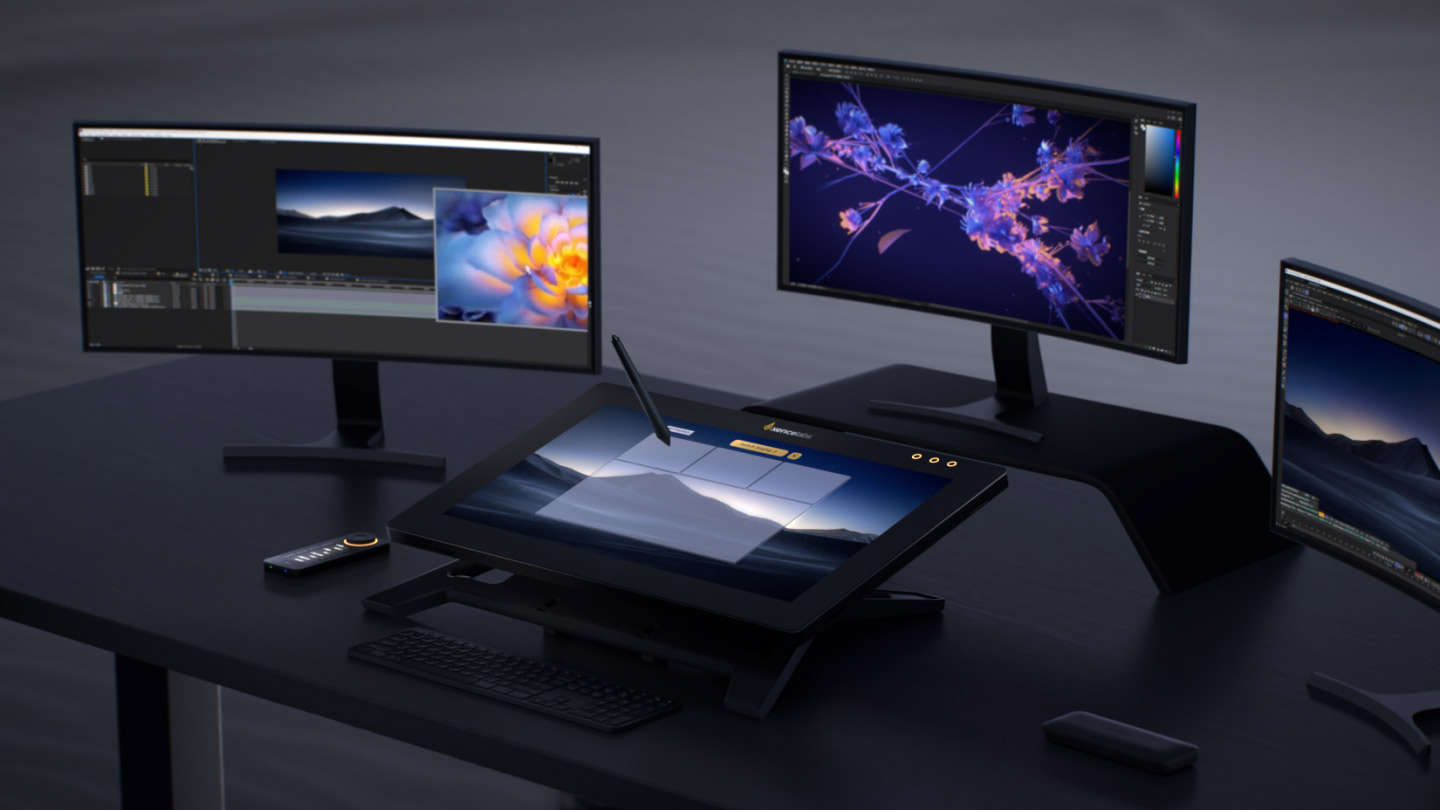

Virtual Tablet Mode gives access across extended screens, allowing objects to be moved to any mapped display.

Silence is Golden

The fan-less metal back housing provides silent heat dissipation.

Create What You Dream

Xencelabs Pen Display 24

Markets

Illustration / 2D Animation / 3D Animation & Modeling  / Game Design & Simulation
Industrial Product Design / Fashion/Apparel / Mixed Media Art / Broadcast / Video Editing / VFX / Photography / Higher Education / Graphic Design

Accessories

Quick Keys

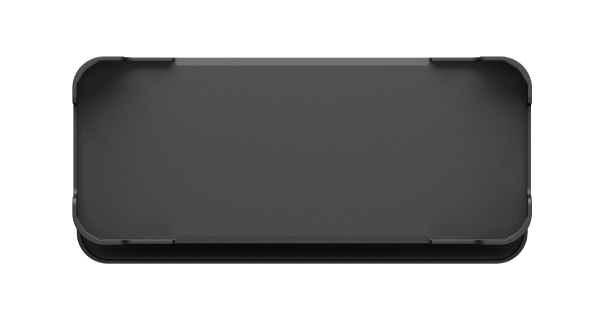

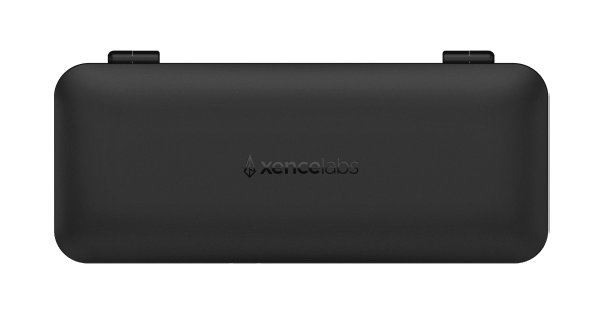

Pen Case

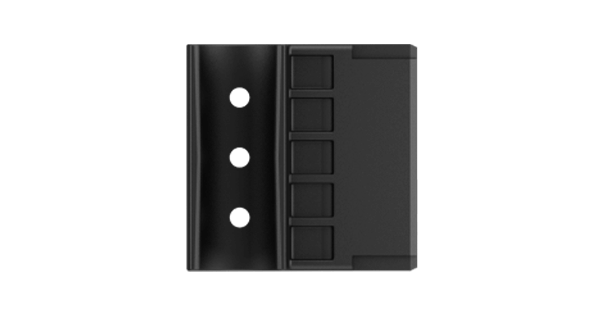

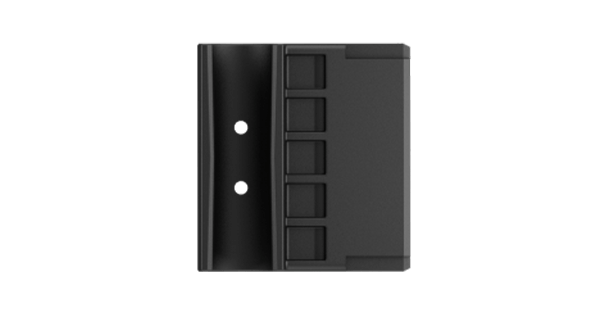

Quick Keys Clip

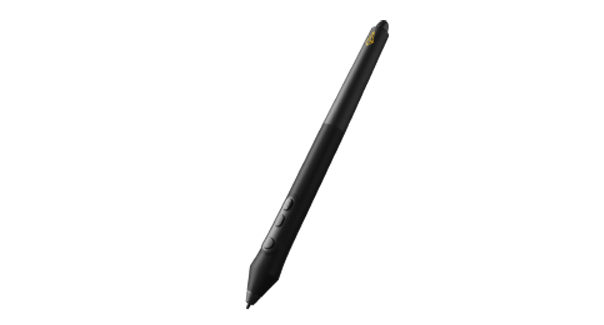

3-Button Pen v2 + Eraser

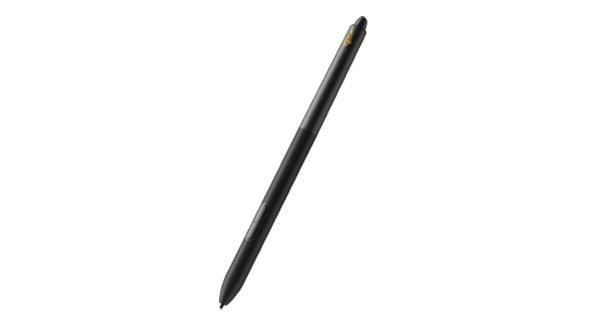

Thin Pen v2 + Eraser

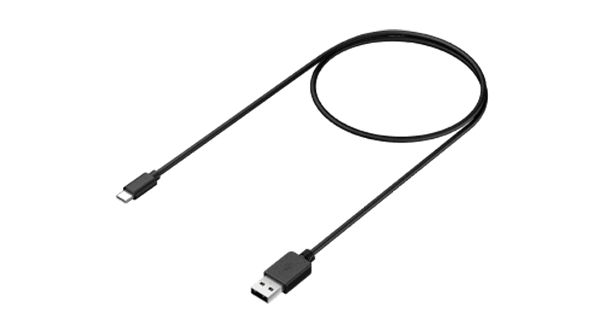

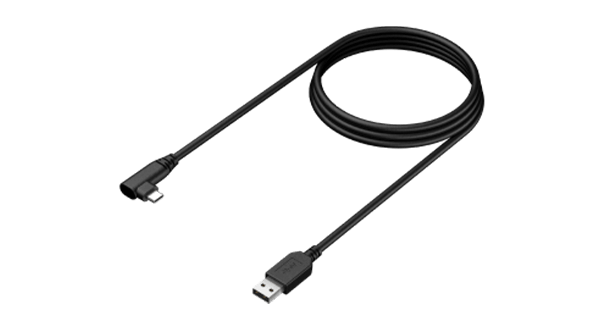

USB-C – USB-A Cable

3 Button Pen Clip

Thin Pen Clip

USB-C – USB-A Cable (0.6m)
(Quick Keys)

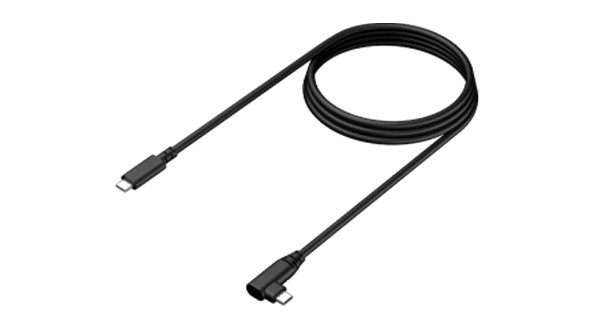

USB-C to USB-C Cable

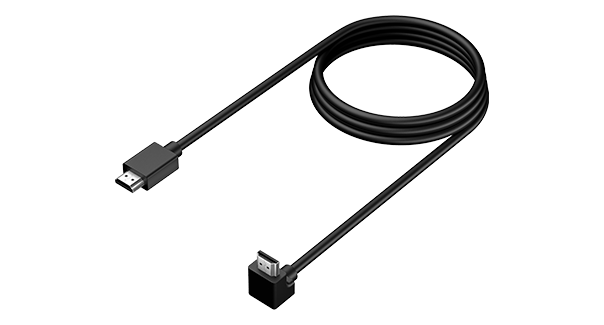

HDMI Cable

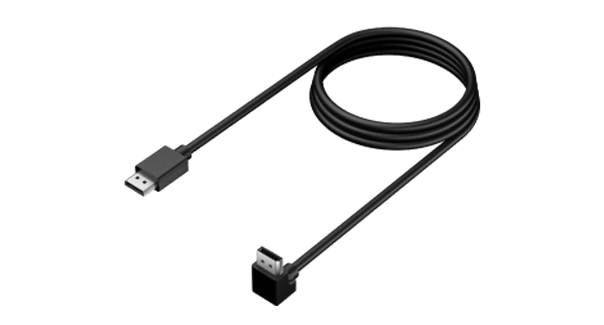

DisplayPort Cable

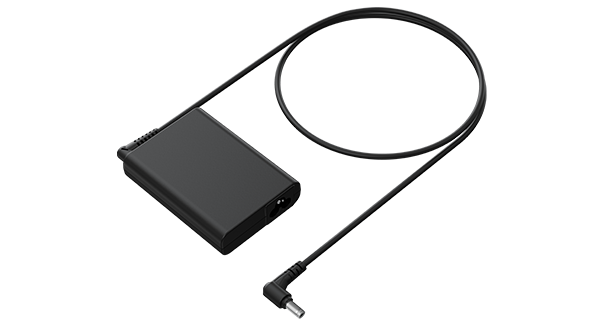

Power Adapter

Specifications

Overview
Overview
Model number
LPH2412U-A
Color
Carbon Black
Warranty
2 years
Stand
Xencelabs Tilt Stand Included (Multi-Axis stand optional)
Stand adjustability
16 to 72 degrees
System requirements
Windows® 7 or later, Mac OS X 10.12 or later, Linux.† Wireless or cable connection requires USB Type A port (includes Type C adapter) and internet access to download driver
Pen Display Specifications
Pen Display Specifications
Model number
LPH2412U-A
Dimensions (W x H x D)
618.50 x 388.00 x 34.70mm (24.4 x 15.3 x 1.4 in)
Active area size
527.04 × 296.46mm (20.75 x 11.7 in)
Display resolution
3840 x 2160 pixels @ 60Hz (4K UHD)
Weight
6.0kg / 13.3lbs (6.9kg / 15.2lbs w/ Tilt Stand + Rubber Feet)
Security
Kensington MicroSaver® 2.0 (Lock not included)
Displayable colors (Maximum)
1.07 billion colors
Color gamut coverage ratio
99% Adobe RGB (CIE 1931) (typ) 93% DCI-P3 (CIE 1931) (typ)
Surface
Edge-to-edge tempered glass with Super-AG etching™
Brightness
330cd/m2
Power Input Voltage
100 to 240 VAC, 50/60HZ
Power Output Voltage
12V / 5.0A
Pens Specifications
Pens Specifications
Pens
3-Button Pen v2 + Eraser / Thin Pen v2 + Eraser
Pen technology
EMR
Pen pressure levels
8192 levels (Finely Tuned Pressure Curve)
Pen tilt angle
60 degrees
Pen resolution
5080 lpi
Pen type
Pressure-sensitive, cordless, battery-free
Quick Keys Specifications
Quick Keys Specifications
Model number
K02-A
Product dimensions (W x H x D)
6.2 x 2.46 x 0.47 in / 157.6 x 62.5 x 12 mm
Product weight
142 g
Display
3.12-inch OLED display; clearly displays key functions
Directions
4 directions (0° / 90° / 180° / 360°); text and symbols can be read horizontal or vertical on the OLED display
Security
Kensington NanoSaver® (Lock not included)
Hours per charge
25-53 hours (1.5 hours charging time)
Custom buttons
8 per set. There can be 5 sets giving a total of 40 short-cut keys
Dial
Up to 4 modes (user can define)
* All features and specifications are subject to change.
