Studio Level Performance, Individual Adaptability

Xencelabs Pen Tablet Medium Series

Studio Level Performance, Individual Adaptability

Xencelabs Pen Tablet Small

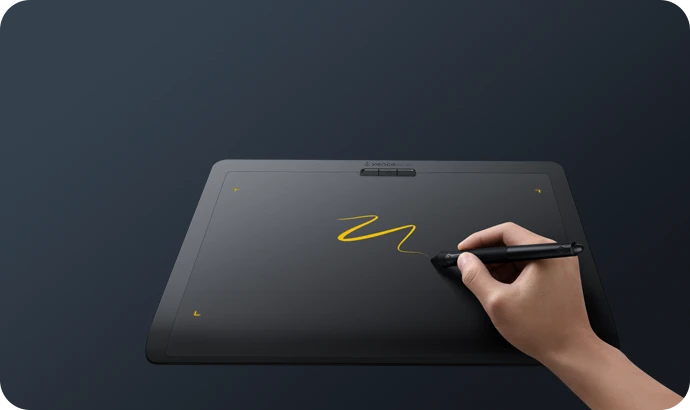

Natural Drawing Experience

Ultra-fine textured surface and a choice of 2 types of pen nibs deliver the feeling of a pen-and-paper like drawing experience

Curved, Ergonomic Palm Rest

Draw for extended periods with less fatigue

Streamlined, 8mm Profile

Thinner than many other tablets, highly portable

Two Pen Sizes

Programmable buttons, erasers,
and different grips for preference

Powerful Battery Life

Up to 16 hours of battery life on a single charge

Large Drawing Area

16:9 drawing area meets standard displays

Wireless Connectivity

Connect wirelessly to create anywhere

Quick Keys

8 buttons with 5 shortcut sets, OLED display,
and physical dial

*Only Included with Medium Bundle, otherwise sold separately

Best In Class Drawing Performance

For Fluid, Precise & Accurate Creation

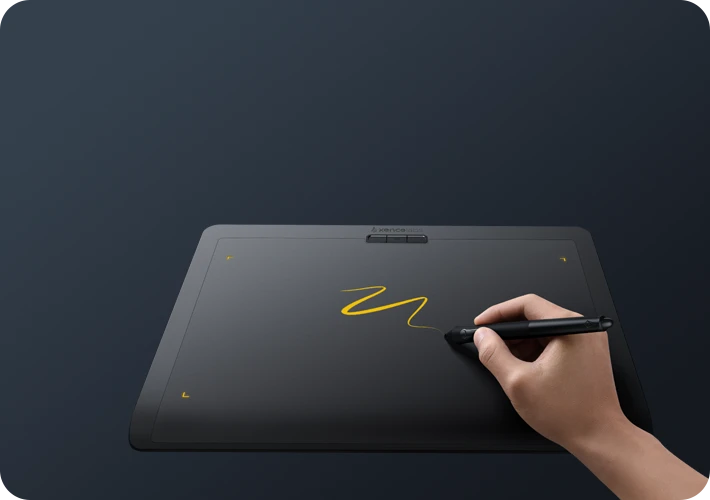

Finely Tuned Pressure Curve

The inclusion of a 3G initial activation force and studio-grade levels of pressure sensitivity ensures a smooth and uniform variation in stroke thickness, resulting in a delicate and refined drawing experience no matter how light or heavy your touch.

Pen-and-Paper Feel

Thoughtfully selected materials on the pen tablet surface give creatives the right amount of friction, delivering fluid, accurate pen strokes that feel like drawing on traditional pen and paper.

Streamlined & Ergonomic Design

Designed for Drawing Comfort

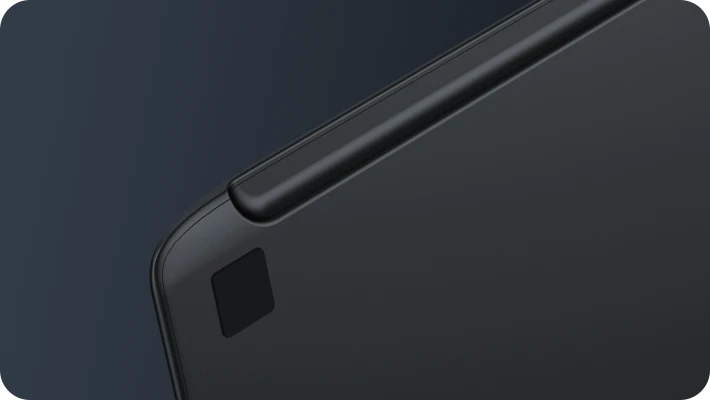

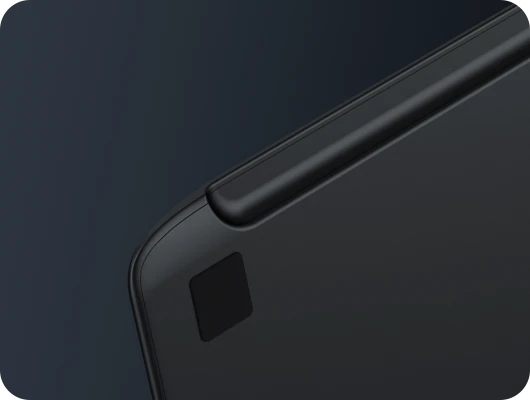

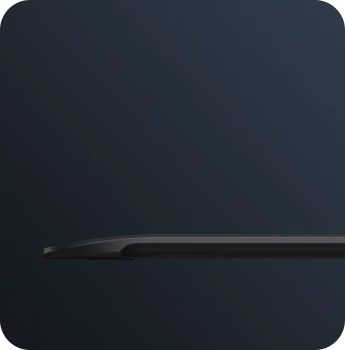

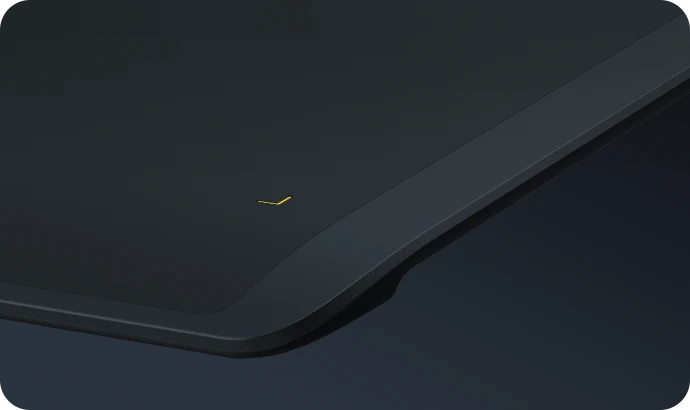

Ergonomic Palm Rest

Unlike most flat drawing tablets, the Xencelabs Pen Tablets have a curved, conveniently sloped palm rest angled at 6.5° to support your wrists, alleviating fatigue caused by many hours of drawing.

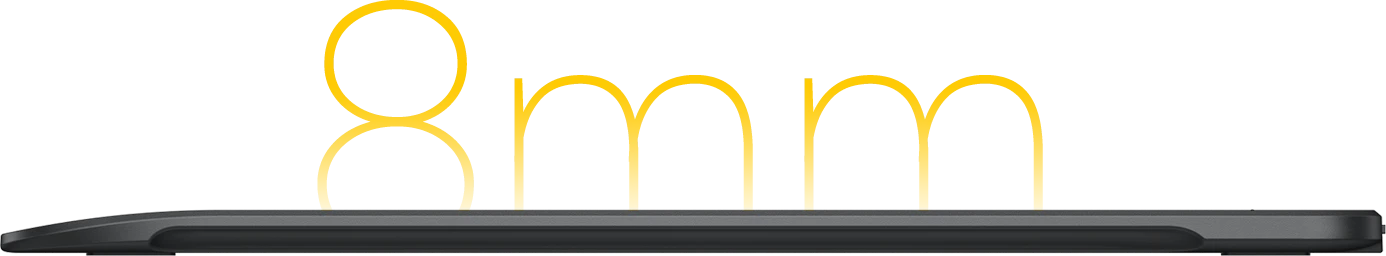

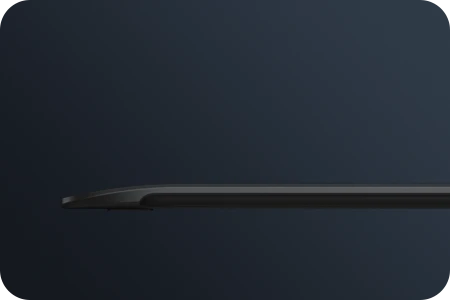

8mm Thin

The Xencelabs Pen Tablets boast a Magnesium alloy backplate with grooved edges, offering durability, style, and easy maneuvering. Three device control buttons located at the top are easy to access for both left and right-handed.

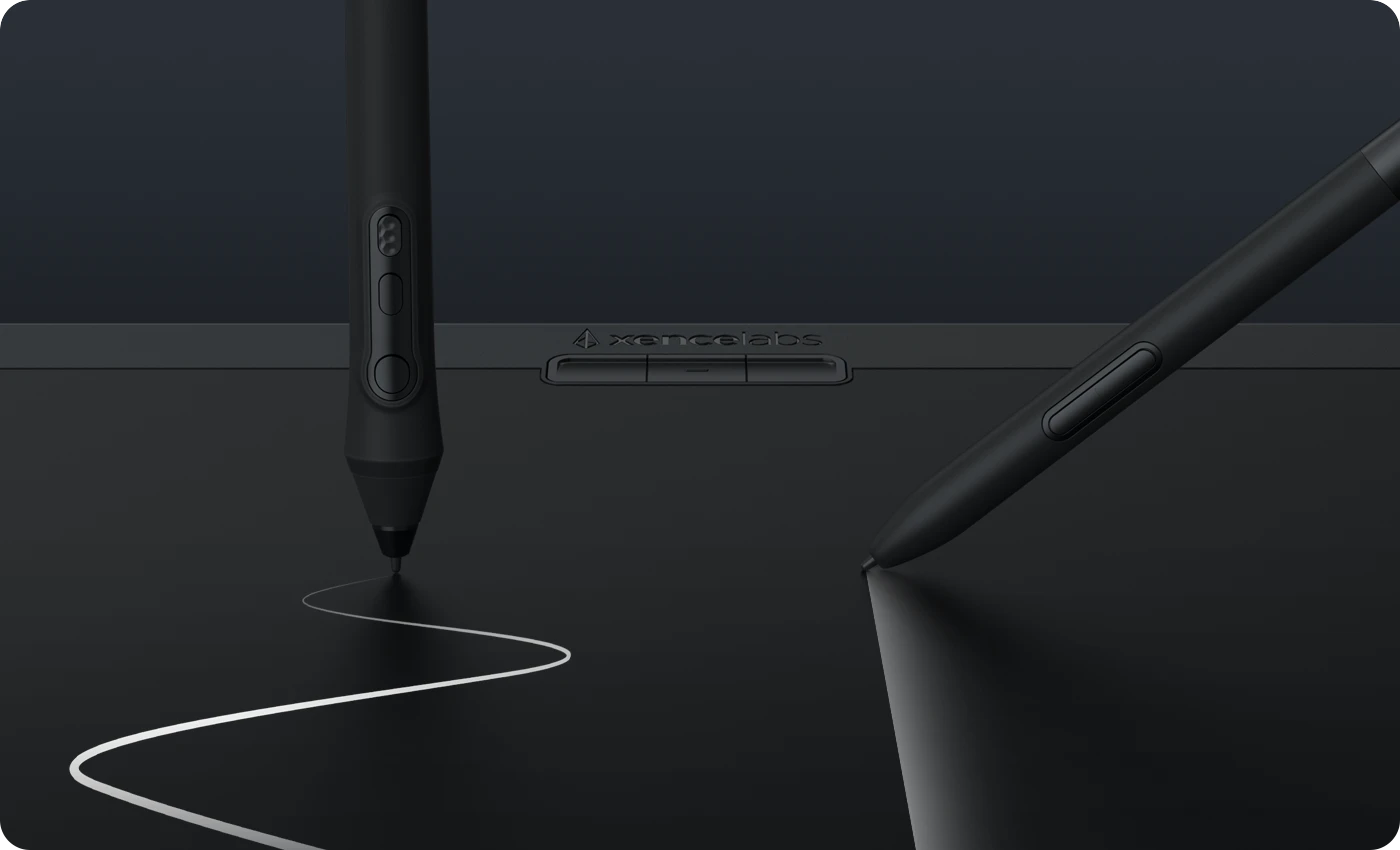

Two Pens to Facilitate Creative Expression

The 3 Button Pen and Thin Pen both come with the Xencelabs Pen Tablets. They are cordless, battery-free, and have a 60° tilt range. They also have built-in erasers so you can erase unwanted pixels, like using a real pencil.

Customizable
Buttons

60°
Tilt range

Built-In
Eraser

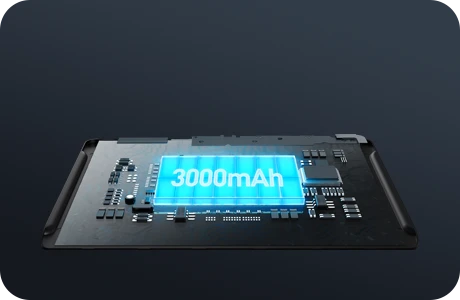

Powerful Battery Life for Wireless Creation

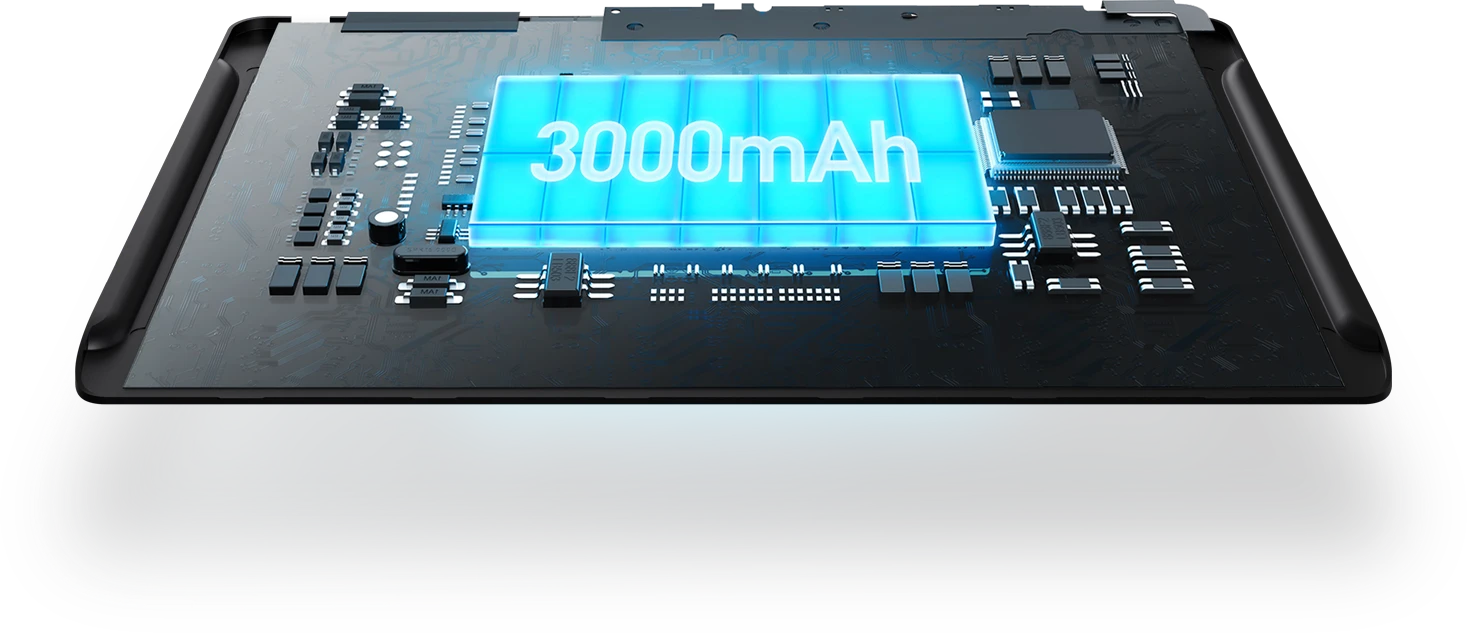

With a built-in, large 3000mAh battery, the Xencelabs Pen Tablets can support wireless all-day, anywhere creation of up to 16 hours on just a single, full charge when connected via included Bluetooth dongle.

Adaptable to Artist Preferences

Increases Productivity & Efficiency

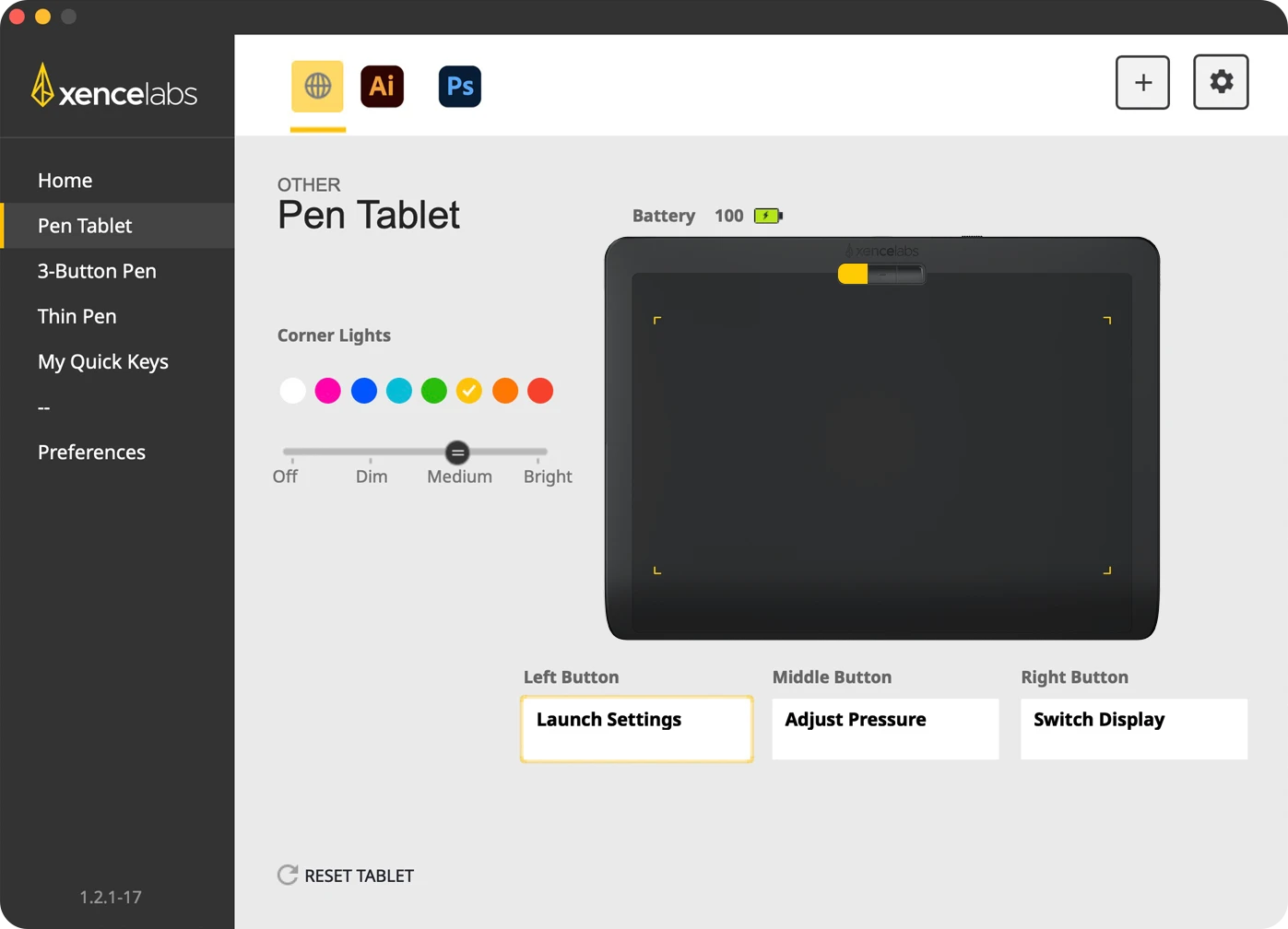

Easy-To-Use Driver

The Xencelabs driver was built from the ground up to be modern, intuitive, and user-friendly. It is easily accessible from the shortcut buttons on the tablet, and it gives quick access to customizing Quick Keys, programming pen buttons, adjusting pressure curve, and more.

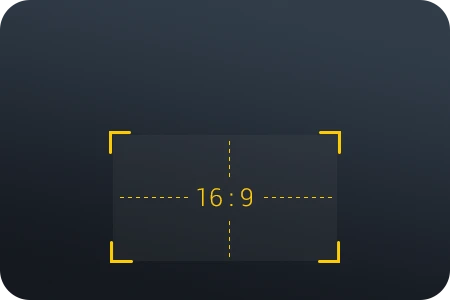

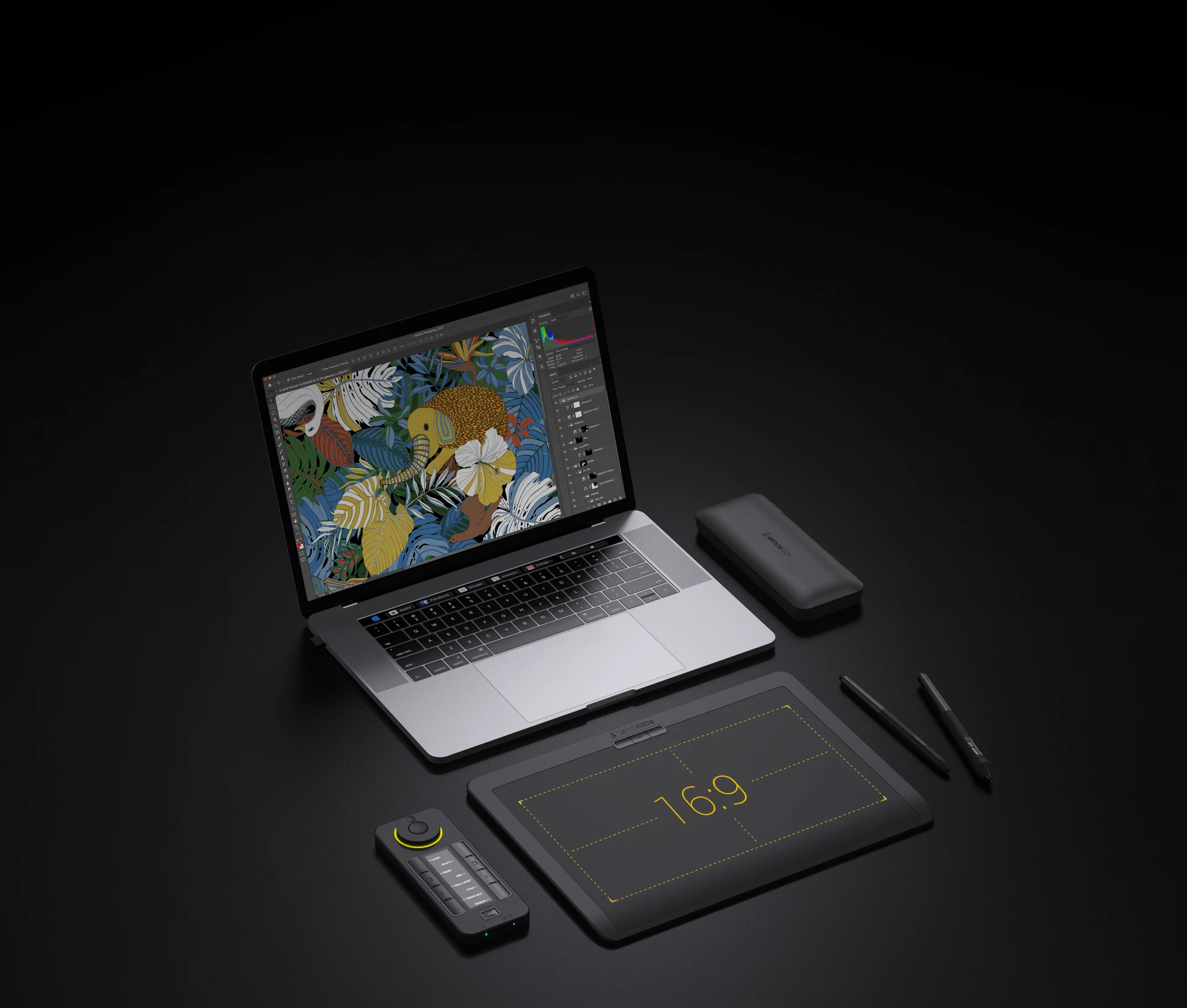

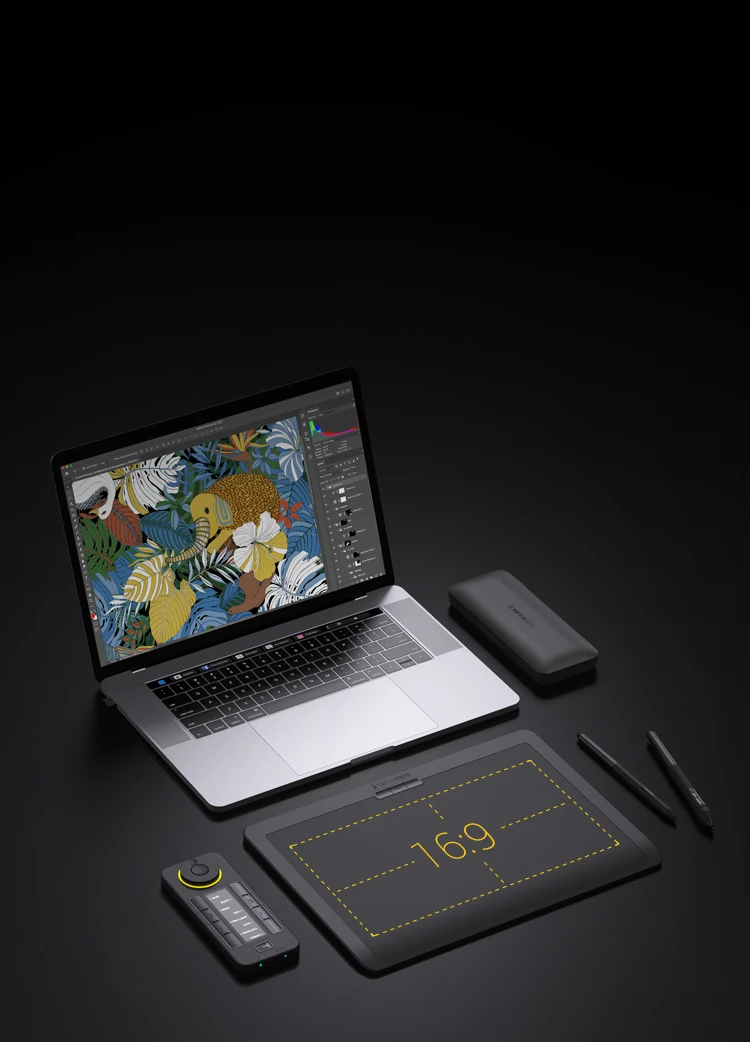

16:9 Drawing Area, Customizable LED Lights

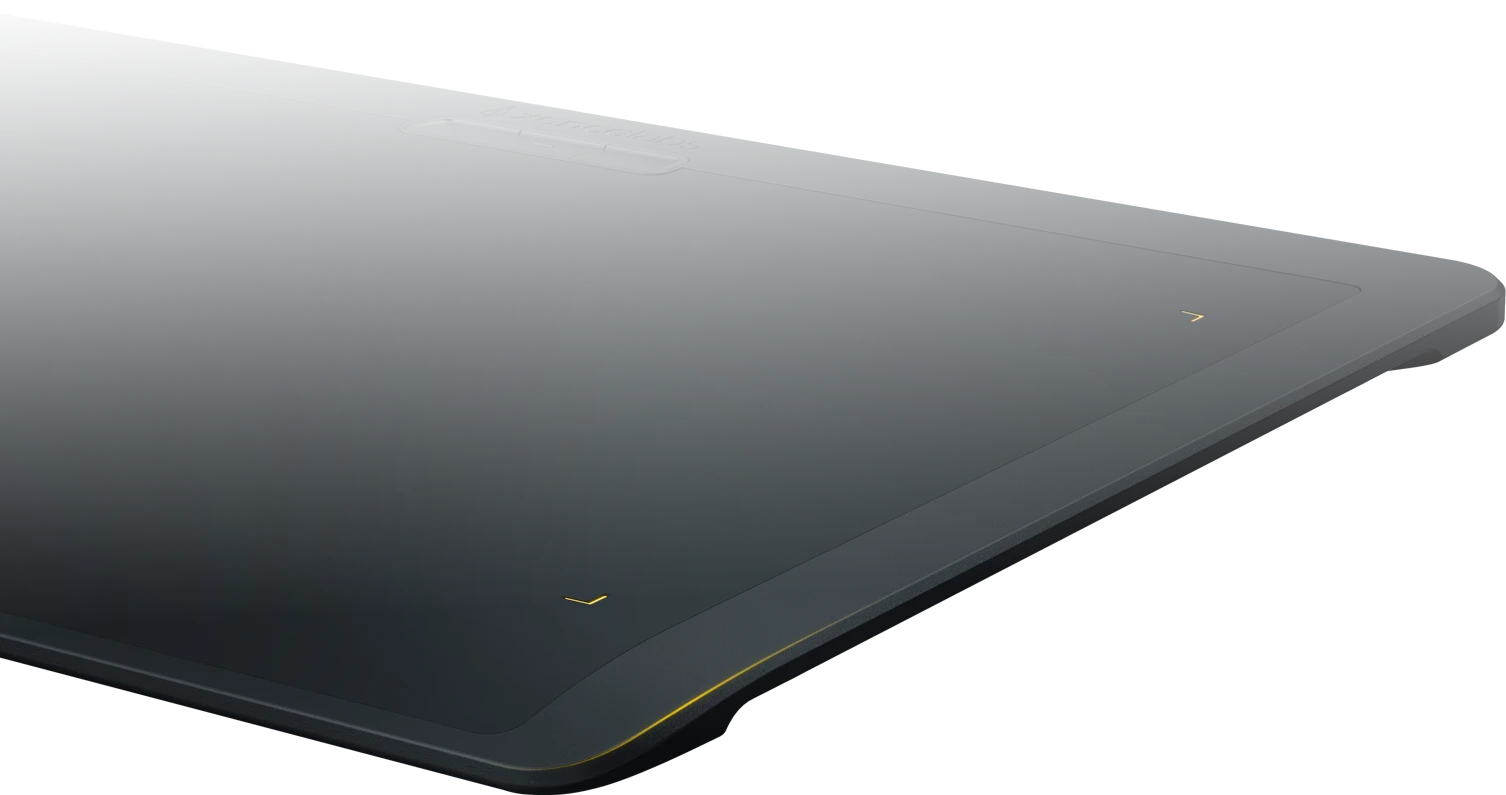

A 16:9 aspect ratio provides a generous drawing area, matching standard displays, that transitions smoothly into the gently curved palm rest. The adjustable LED corner lights help define the drawing area and can be customized to indicate application being used, adding convenience and an aesthetically pleasing touch.

16:9
Drawing Area

Customizable
LED Lights

Wireless
Connectivity

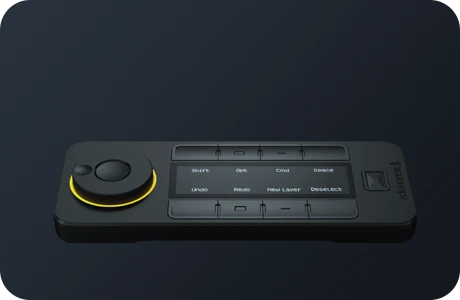

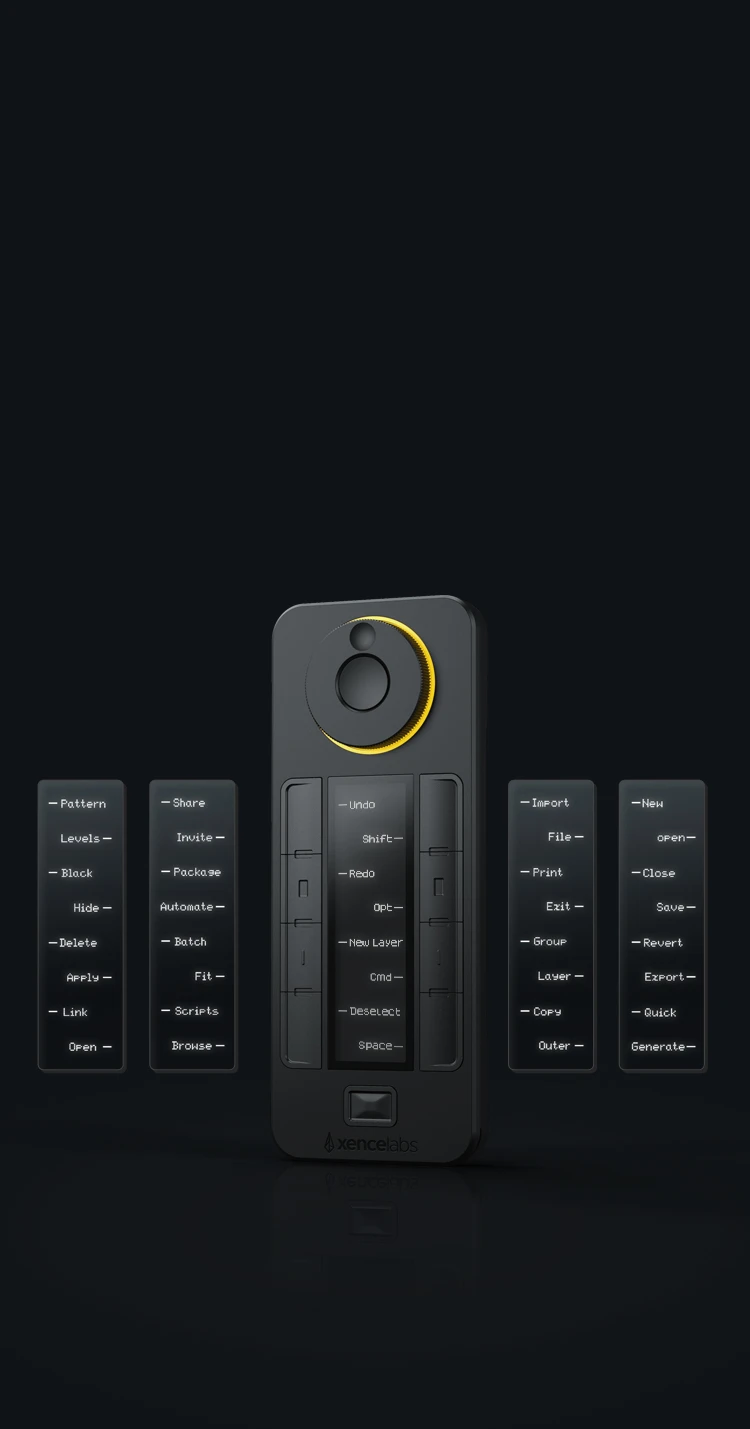

Xencelabs Quick Keys

The Xencelabs Quick Keys has a crystal-clear OLED display, physical dial for precise control, and most importantly, 8 customizable shortcut keys among 5 grouped sets for a total of 40 button shortcuts per application, resulting in infinite compatible applications!

*Only included with Medium Bundle, otherwise sold separately

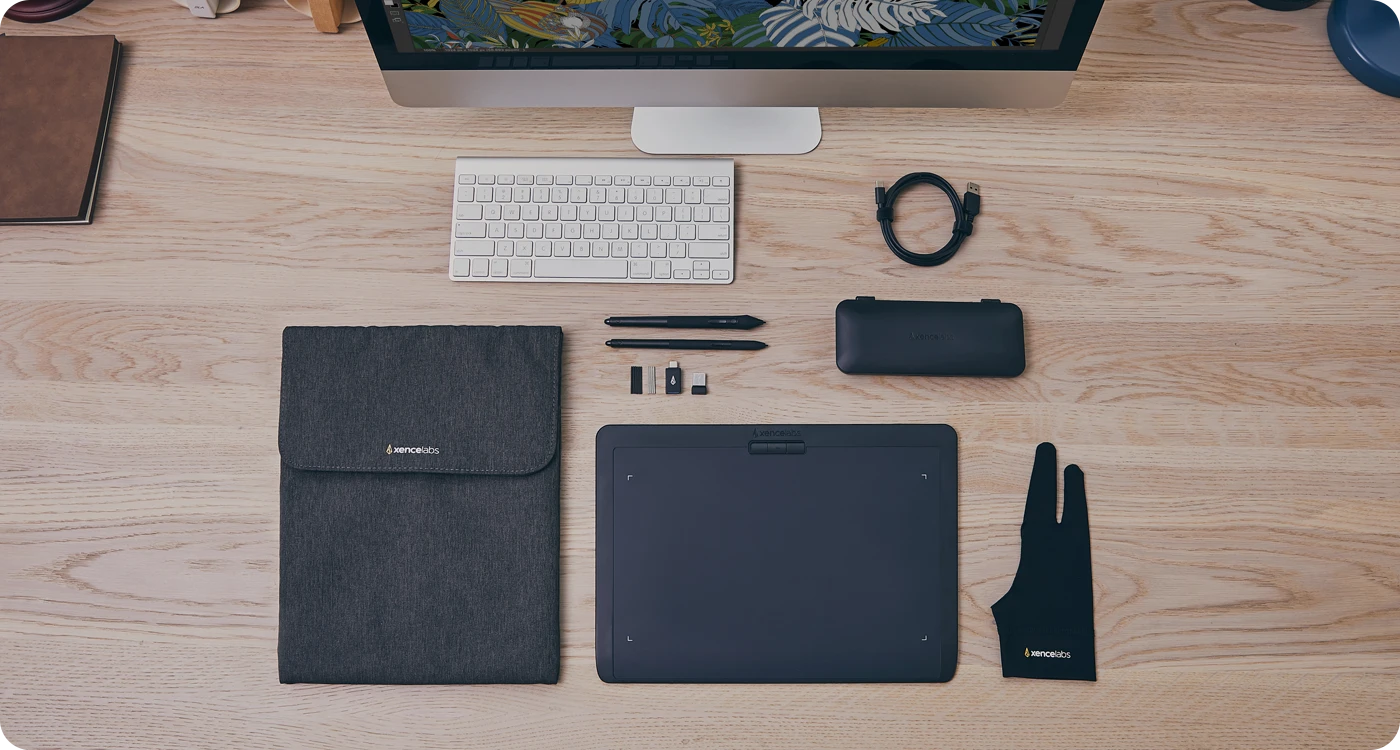

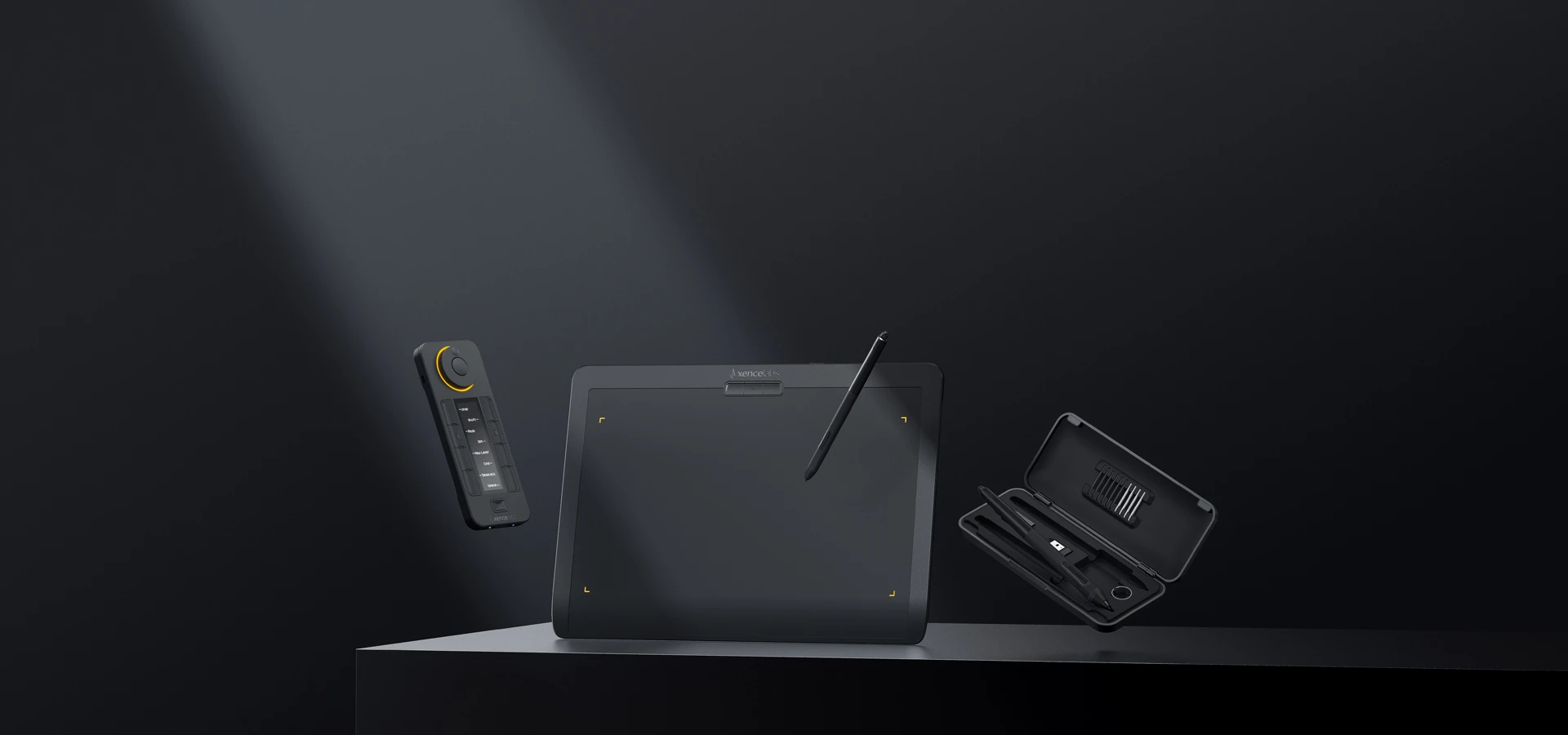

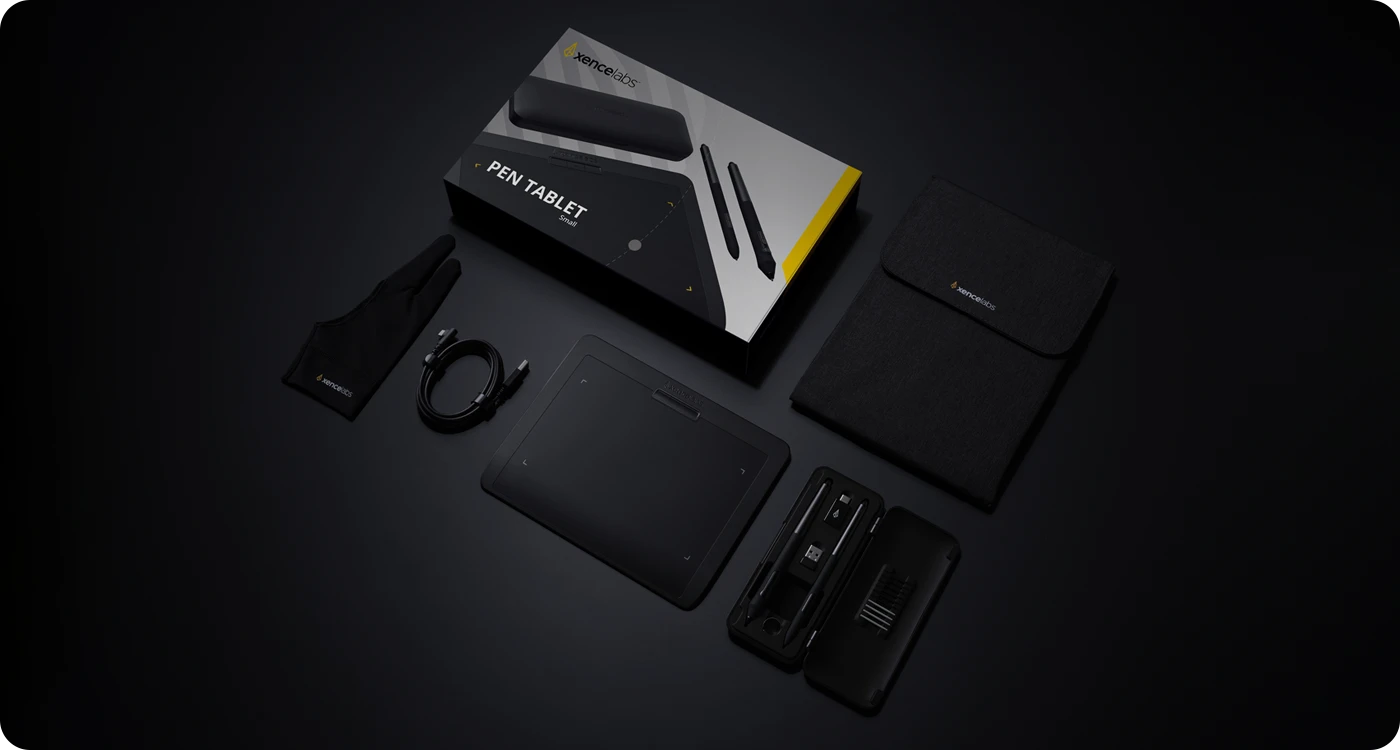

Thoughtful Accessories Included

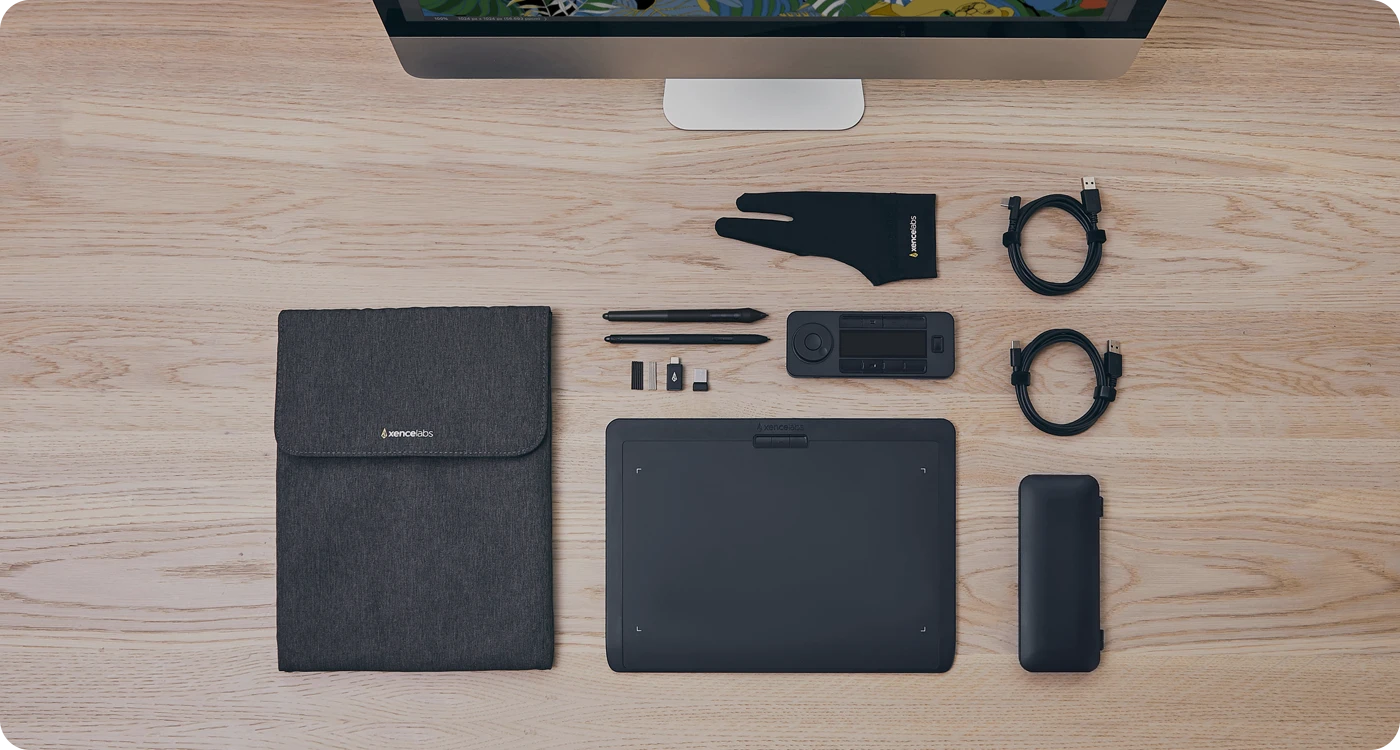

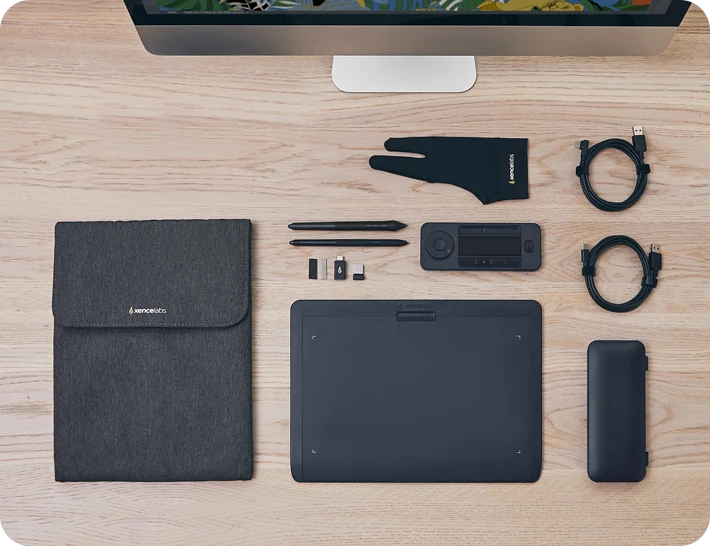

It's important that an artist is always equipped with everything needed for efficient creation. That's why we always provide a pen case with two pens (3 Button Pen & Thin Pen), 10 extra pen nibs (6 standard + 4 felt + extractor), a Bluetooth dongle, USB-A to USB-C adapter, connection cable, and protective sleeve to hold it all. If you opt for the Pen Tablet Medium Bundle, an extra cable and Quick Keys is also included.

Xencelabs Pen Tablet Medium Bundle

Xencelabs Pen Tablet Medium

Xencelabs Pen Tablet Small

Streamlined Details At a Glance

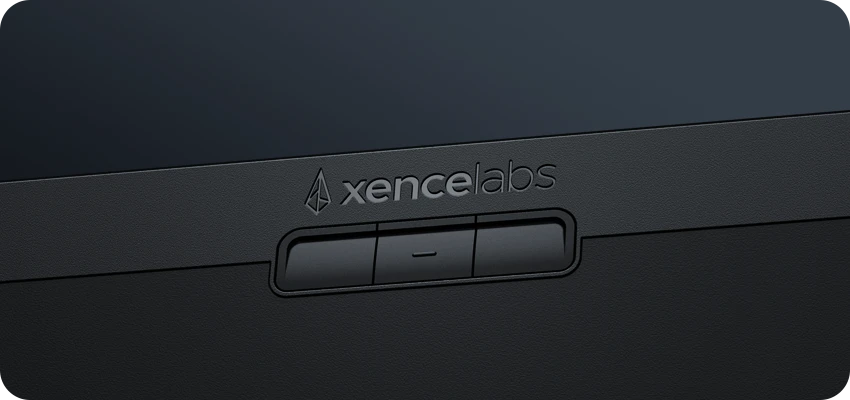

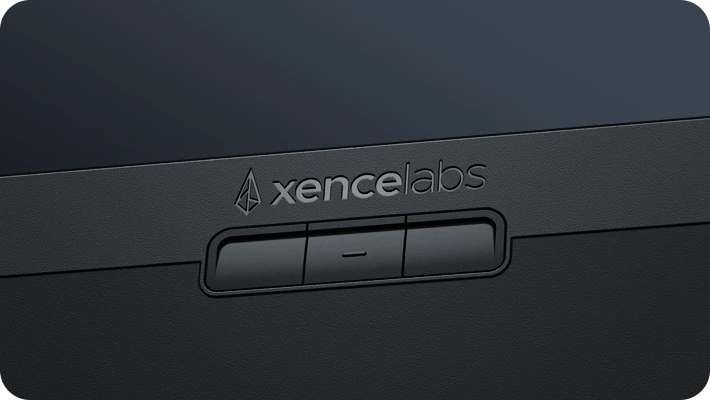

3 Top Shortcut Buttons

Magnesium Alloy Backing

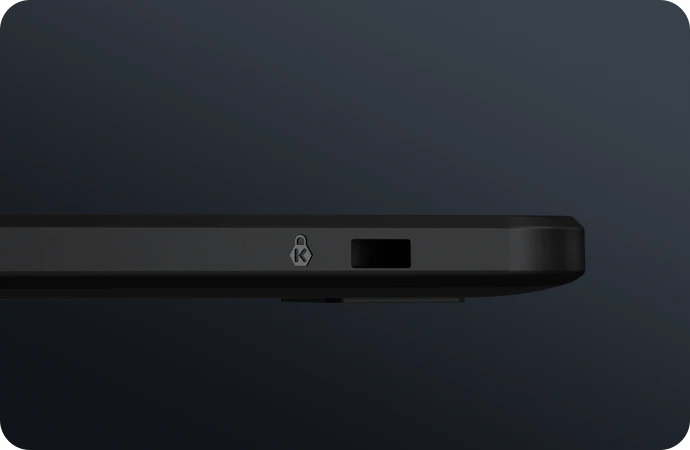

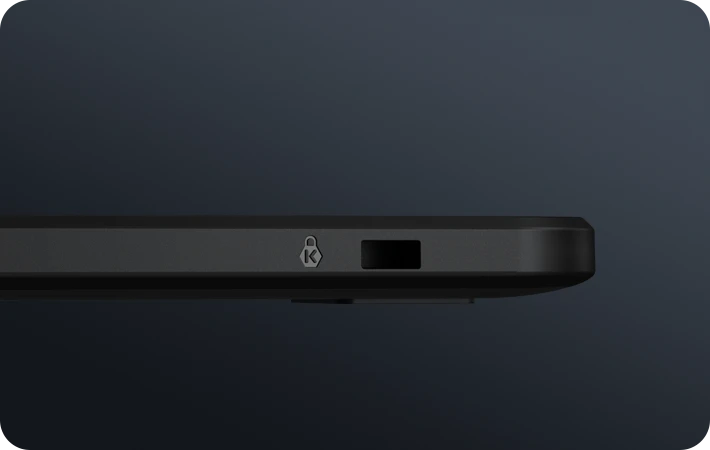

Kensington NANO® Security Slot™

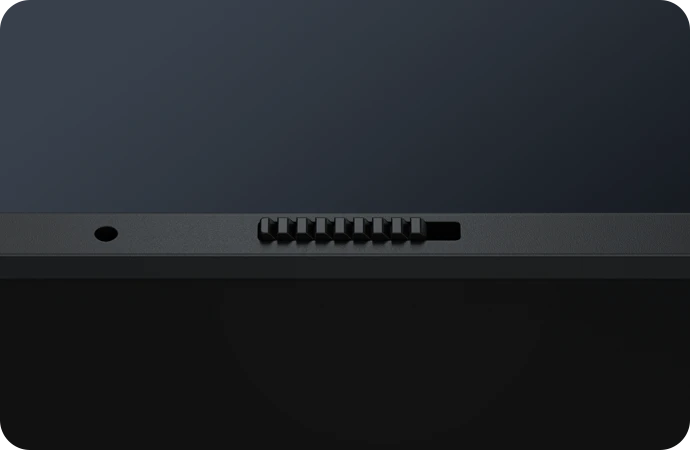

Sliding Power Button

Vast Compatibility for More Connectivity

Xencelabs Pen Tablets have a fully functional Linux driver with similar features to the Windows and Mac versions (Ubuntu 14.04 or above, Debian 9.5, CentOS 7.0 or above, RedHat 7.0 or above).

Specifications

Overview
Overview
Model number
BPH1212W-A (Pen Tablet Medium)
BPH0812W-A (Pen Tablet Small)
Color
Carbon Black
Warranty
2 years
Cable
USB-A to USB-C cable (L)
Certifications
CE/WEEE/FCC/CQC/
KC/TELEC/EAC/
RCM/

RoHS/
UKCA/
WERCS/
NOM/

California65/
CB/
SRRC/FAC/
NBTC/
EMC/

NCC/BSMI/SDPPI/
NTC/
IMDA/


SIRIM/SDPPI
System requirements
Windows 7 or later, Mac OS X 10.12 or later, Linux; wireless or cable connection requires USB Type-A port (includes Type-C adapter), internet access to download driver.
Tablet Specifications
Tablet Specifications
Model number
BPH1212W-A (Pen Tablet Medium)
BPH0812W-A (Pen Tablet Small)
Dimensions (W x H x D)
12.6 x 9.16 x 0.3 in / 320.5 x 232.5 x 8 mm (Pen Tablet Medium)
9.21 x 7.27 x 0.3 in / 234.18 x 184.66 x 8 mm (Pen Tablet Small)
Active area size
10.33 x 5.8 in / 262.4 x 147.4 mm (Pen Tablet Medium)
6.93 x 3.89 in / 176.10 x 99.05 mm (Pen Tablet Small)
Active area aspect ratio
16:9
Weight
710.5 g / 1.57 lbs (approx) (Pen Tablet Medium)
398 g (Pen Tablet Small)
Hours per charge
16 hours (2.5 hours charging time)
Ports included
USB-C
Security slot
Kensington Nano Security Slot™
Connectivity
Wireless or USB
Technology
Battery-free EMR (Electro-Magnetic Resonance)
System requirements
Windows 7 or later, Mac OS X 10.12 or later, Linux; wireless or cable connection requires USB Type-A port (includes Type-C adapter), internet access to download driver.
Pens Specifications
Pens Specifications
Pen models
PH25 (3 Button Pen) / PH6-A (Thin Pen)
Pen buttons
3 Button Pen: 3 buttons + eraser / Thin Pen: 2 buttons + eraser
Pressure levels
8192 levels (both pens)
Pen tilt range
60 degree (both pens)
Pen grip material
Soft touch rubber
Pen size
3 Button Pen: 157.56 x Φ14.73 mm / Thin Pen: 157.54 x Φ9.5 mm
Pen weight
3 Button Pen: 17 g  / Thin Pen: 12 g
Quick Keys Specifications
Quick Keys Specifications
Model number
K02-A
Color
Carbon Black
Product dimensions (W x H x D)
6.2 x 2.46 x 0.47 in / 157.6 x 62.5 x 12 mm
Product weight
142 g
Display
3.12-inch OLED display; clearly displays key functions
Directions
4 directions (0° / 90° / 180° / 360°); text and symbols can be read horizontal or vertical on the OLED display
Sleep timer
30, 60, 90, 120 minutes, never (set by user)
Hours per charge
25-53 hours (1.5 hours charging time)
Custom buttons
8 per set. There can be 5 sets giving a total of 40 short-cut keys
Dial
Up to 4 modes (user can define)
Security slot
Kensington Nano Security Slot™
Connectivity
Wireless or USB
System requirements
Windows 7 or later, Mac OS X 10.12 or later, Linux version; wireless or cable connection requires USB Type-A port (includes Type-C adapter), internet access to download driver.
