Xencelabs Pen Tablet Medium Bundle SE

Newly Released Special Edition Pen Tablet Medium Bundle

The Xencelabs Pen Tablet Medium Bundle - Special Edition comes in Nebula White to provide artists with a choice that matches their unique style.

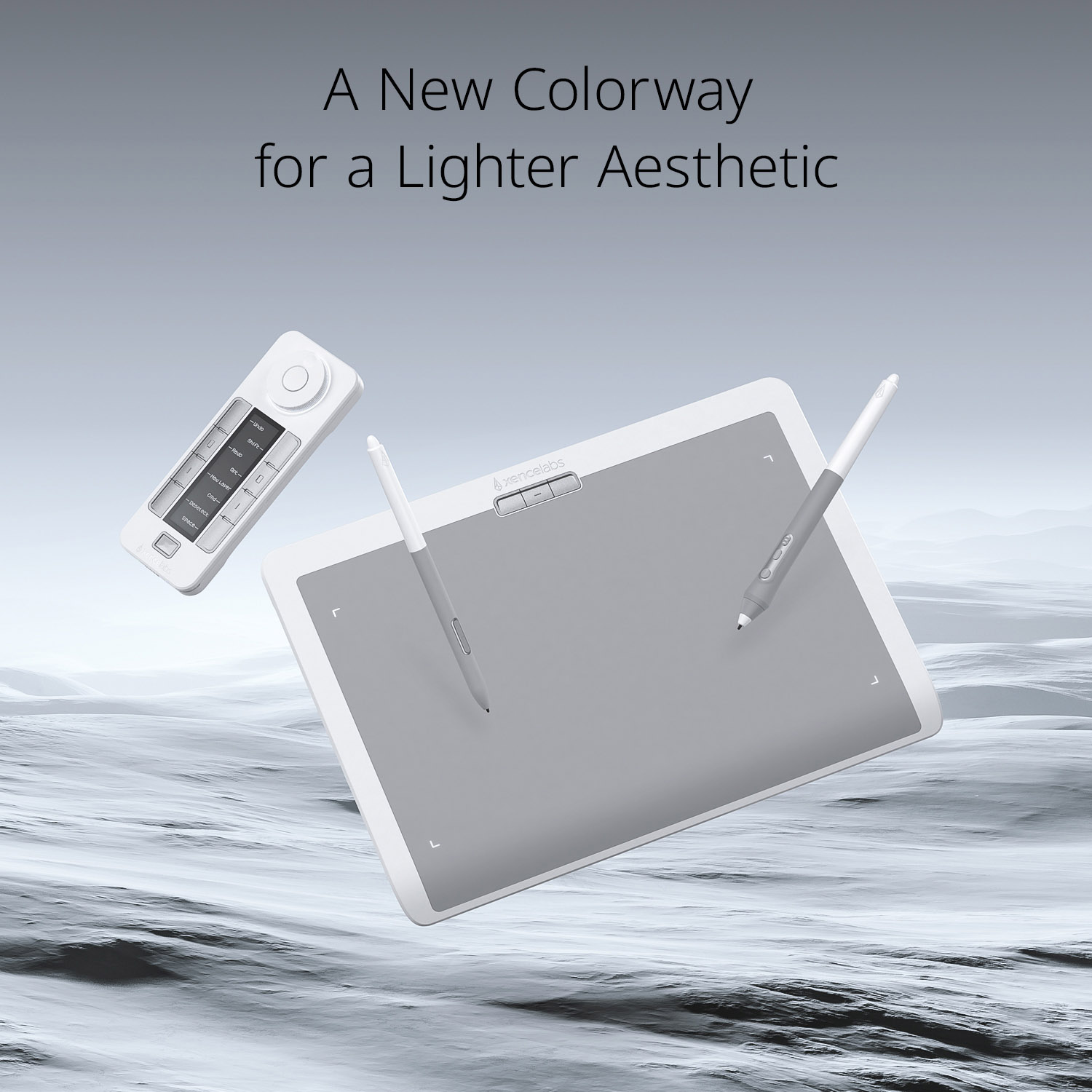

A New Colorway for a Lighter Aesthetic

The Special Edition of the Xencelabs Pen Tablet Medium Bundle SE comes in Nebula White to appeal to creatives with a lighter workspace aesthetic. Now artists have a choice what color graphics tablet they integrate into their personal workflow.

Gentle slope

outlines a sleek comfortable experience.

The Xencelabs Pen Tablet Medium SE is designed with a curved slope which reduces potential tension and stress to create a comfortable, natural drawing experience. Its front edge is narrowed to only 5 mm thin and features a 6.5-degree curved slope to form a seamless palm rest.

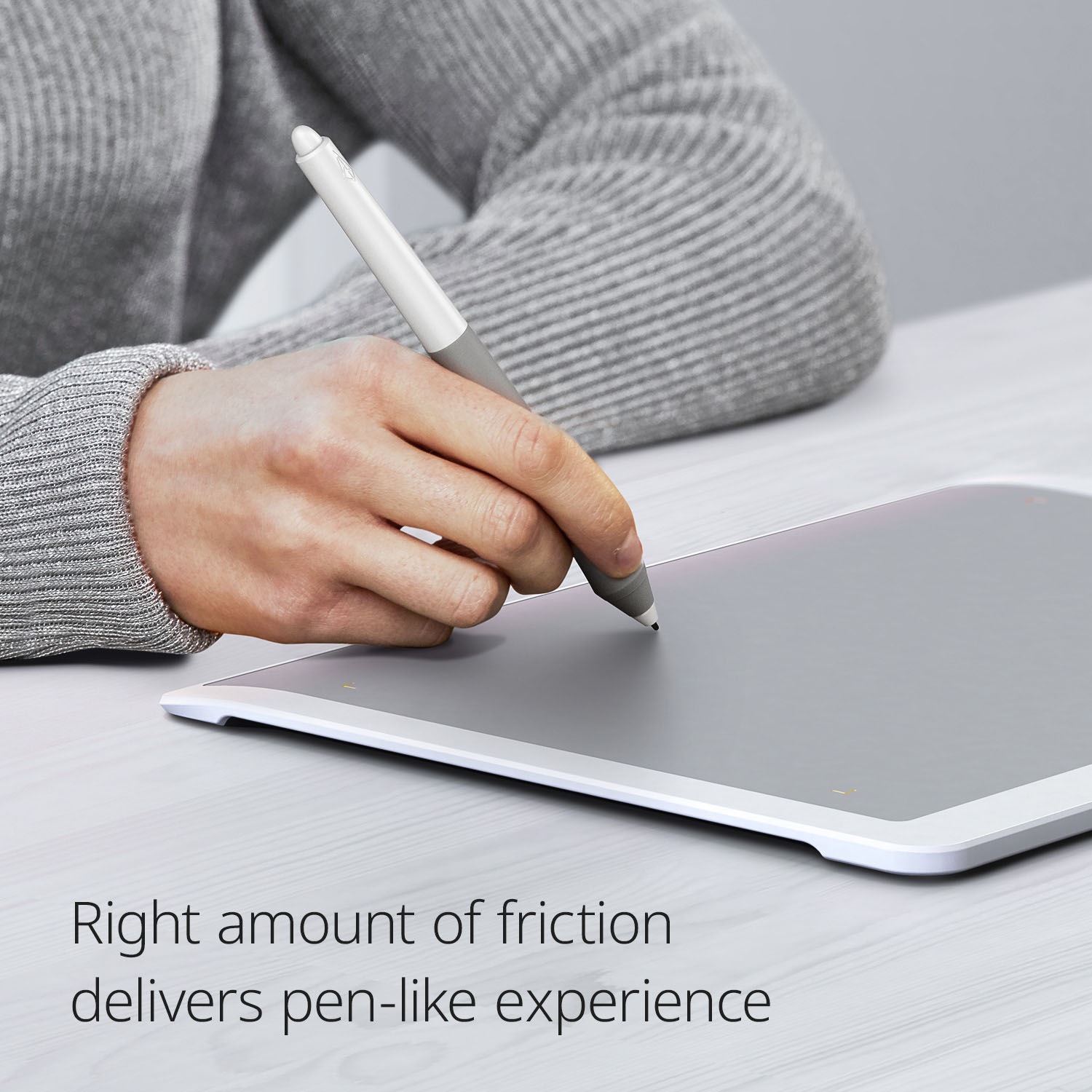

Right amount of friction

delivers pen-like experience.

The active area on the Pen Tablet Medium SE has an ultra-fine frosted texture surface which is wear-resistant and non-slip. This texture gives our included pens a surface that feels reminiscent of a pen to paper.

Felt x 4

Standard x 6

Minimal design

with a thin and elegant profile

The Xencelabs Pen Tablets have natural grooves both sides of the aluminum alloy back to increase portability and comfort while holding your Pen Tablet.

Two pens

for your preferred drawing experience

Two different sized pens come standard with each of our tablets, both come with an eraser and support 8192 levels of pen pressure and 60 degrees tilt function. More sensitive to sense even the lightest stroke, giving you more full control of your workflow.

3 Button Pen + eraser

Move seamlessly from 2D drawing to 3D applications without changing drawing pens. The 3 main inputs on the front of the Pen and eraser on the back are all fully customizable to your application and workflow. This is the first 4 input pen to be launched with a Pen Tablet company.

Thinner Pen

gives you a pencil feeling.

Different from the 3 Button Pen, Thin Pen narrows its diameters by 5.23 mm and its weight by 5 g. The grip feels similar to that of a pencil.

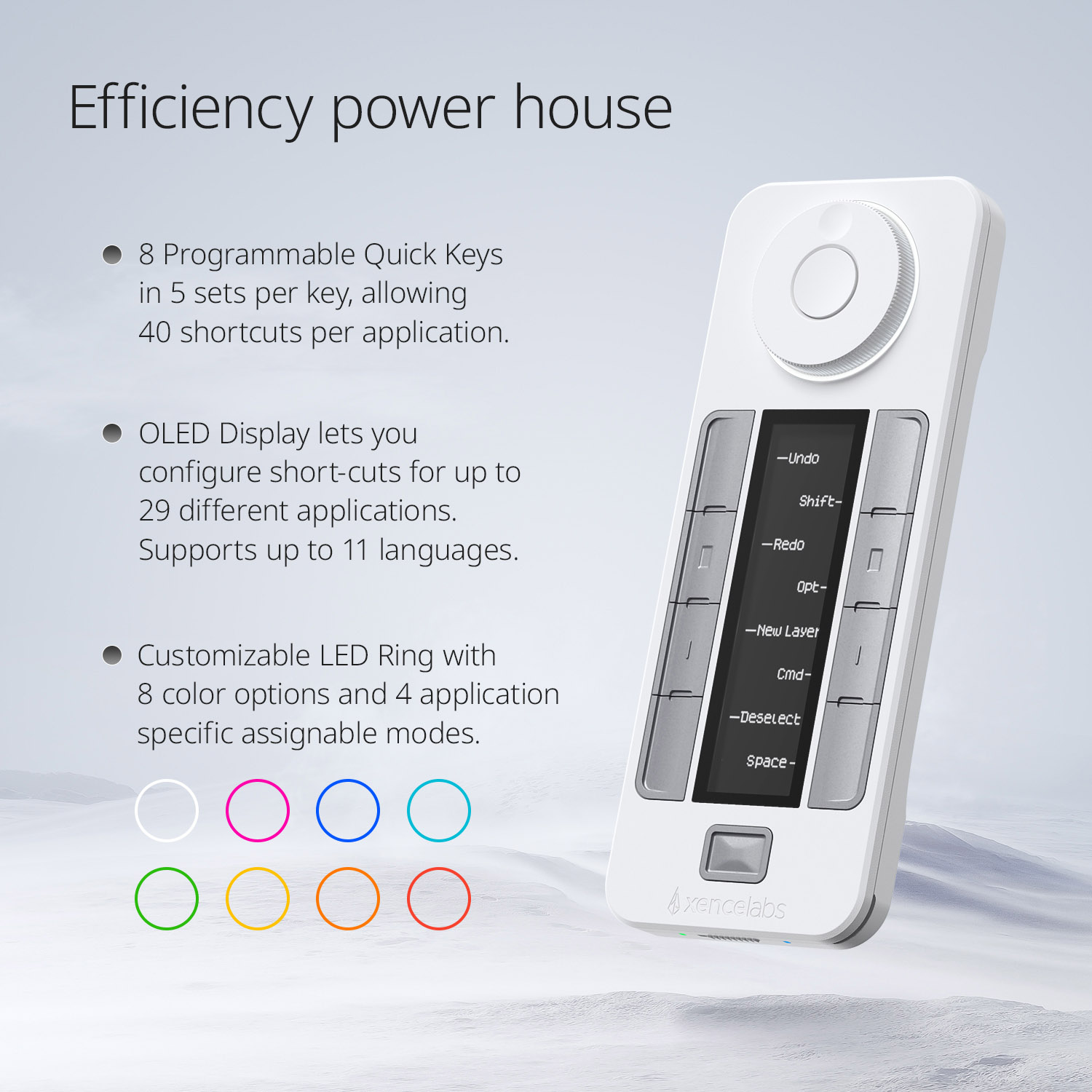

Increase productivity with a programmable shortcut remote

featuring an OLED display

This is the first industry application of an OLED display on a shortcut key remote. With the OLED display, the functions are clear at a glance.Our downloadable driver allows you to customize 40 shortcut keys per application.

• Physical Dial with color LED ring

  Exclusive patent*

• Wireless mode

  30hs work when fully charged

• Avaliable across brands

  Use as a standalone keypad

* Patent number of Physical Dial: (Being applied)

* Quick Keys is not standard for some models and can be purchased separately.

Interactive and intuitive driver

Our downloadable driver is accessible right from the Pen Tablet and allows artists to customize their preferences.

Long-lasting Battery and Unique Wireless Channel

The Pen Tablet Medium features a large built-in 3000mAh battery and comes with an included wireless dongle. When fully charged, the tablet can last for up to 16 hours of wireless use.

* When fully charged, this tablet can last for 16 hours of wireless use. According to 8 hours of use per day, it can last for 2 days.

Other benefits

• Color LED Lights

  Customize your own workspace

• Kensington Nano Security Slot™

  Keep your tablet safe from theft

• 3 Inset Buttons

  Driver Access, Pen Settings, Display Toggle

• Non-slip silicone pads

  Keep the tablet steady while drawing

Specifications

Overview

Model number

BPH1212W-K02-A

Color

White

Warranty

24 months

Cable

2 x USB-C cable (L)

Certifications

CE/WEEE/FCC/CQC/KC/TELEC/EAC/RCM/RoHS/ UKCA/WERCS/NOM/California65/CB/SRRC/FAC/ NBTC/EMC/NCC/BSMI/SDPPI/NTC/IMDA/ SIRIM/SDPPI

System requirements

Windows 7 or later, Mac OS X 10.12 or later, Linux; wireless or cable connection requires USB Type-A port (includes Type-C adapter).

Pen Tablet

Model number

BPH1212W-A

Dimensions (W x H x D)

12.61 x 9.16 x 0.3 in / 320.5 x 232.5 x 8 mm

Active area size

10.33 x 5.8 in / 262.4 x 147.4 mm

Active area aspect ratio

16:9

Weight

710.5 g / 1.57 lbs (approx.)

Hours per charge

16 hours (2.5 hours charging time)

Ports included

USB-C

Security slot

Kensington Nano Security Slot™

Connectivity

Wireless or USB

Technology

Battery-free EMR (Electro-Magnetic Resonance)

Battery-free Pens

Pen models

PH25 (3 Button Pen) / PH6-A (Thin Pen)

Pen buttons

3 Button Pen: 3 buttons + eraser / Thin Pen: 2 buttons + eraser

Pressure levels

8192 levels (both pens)

Pen tilt range

60 degree (both pens)

Pen grip material

Soft touch rubber

Pen size

3 Button Pen: 157.56 x Φ14.73 mm / Thin Pen: 157.54 x Φ9.5 mm

Pen weight

3 Button Pen: 17 g  / Thin Pen: 12 g

Quick Keys

Model number

K02-A

Color

white

Product dimensions (W x H x D)

6.2 x 2.46 x 0.47 in / 157.6 x 62.5 x 12 mm

Product weight

142 g

Display

3.12-inch OLED display; clearly displays key functions

Directions

4 directions (0° / 90° / 180° / 360°); text and symbols can be read horizontal or vertical on the OLED display

Sleep timer

30, 60, 90, 120 minutes, never (set by user)

Hours per charge

25-53 hours (1.5 hours charging time)

Custom buttons

8 per set. There can be 5 sets giving a total of 40 short-cut keys

Dial

Up to 4 modes (user can define)

Security slot

Kensington Nano Security Slot™

Connectivity

Wireless or USB
