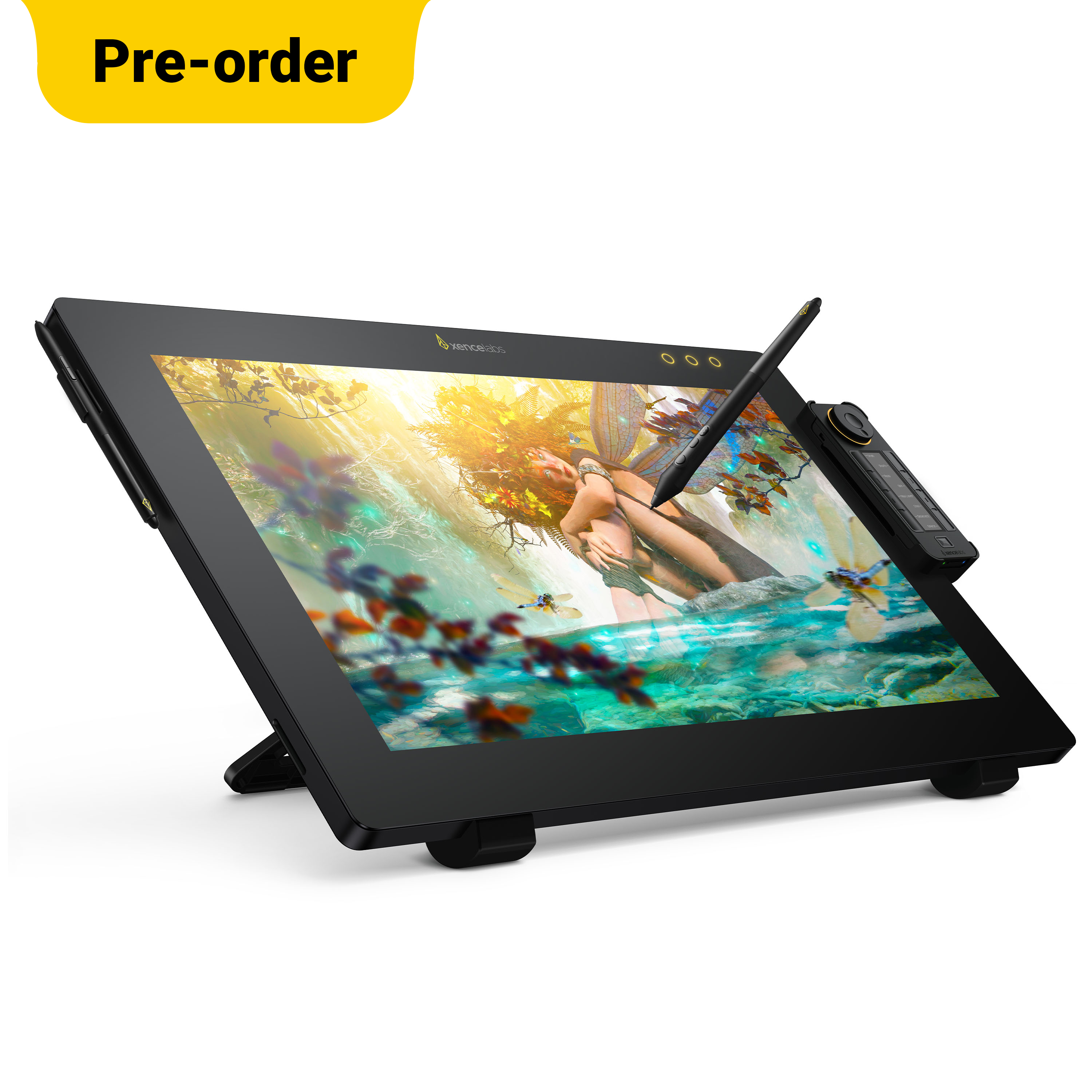

Xencelabs Pen Display 24

(1)  Reviews

  |

(0)  Q & A

The Xencelabs Pen Display 24 is a large size digital drawing screen for creative professionals. It was designed to improve productivity, comfort, and workflow. Designed with feedback and input from industry leading artists. Xencelabs Pen Display 24 is the new choice for the creative community.

Add to Cart

Buy Now

The Xencelabs Pen Display 24  is a large size digital drawing screen for creative professionals. It was designed to improve productivity, comfort, and workflow. Designed with feedback and input from industry leading artists.

Xencelabs Pen Display 24 is the new choice for the creative community.


Key benefits include:

1.Excellent drawing experience with a 24  etched glass display carefully designed to feel like drawing on traditional media. Surface is continuous and uninterrupted by buttons or seams.

2.Pressure curve has been meticulously tuned to be beautifully responsive. Pen response is adjustable to match your drawing style.

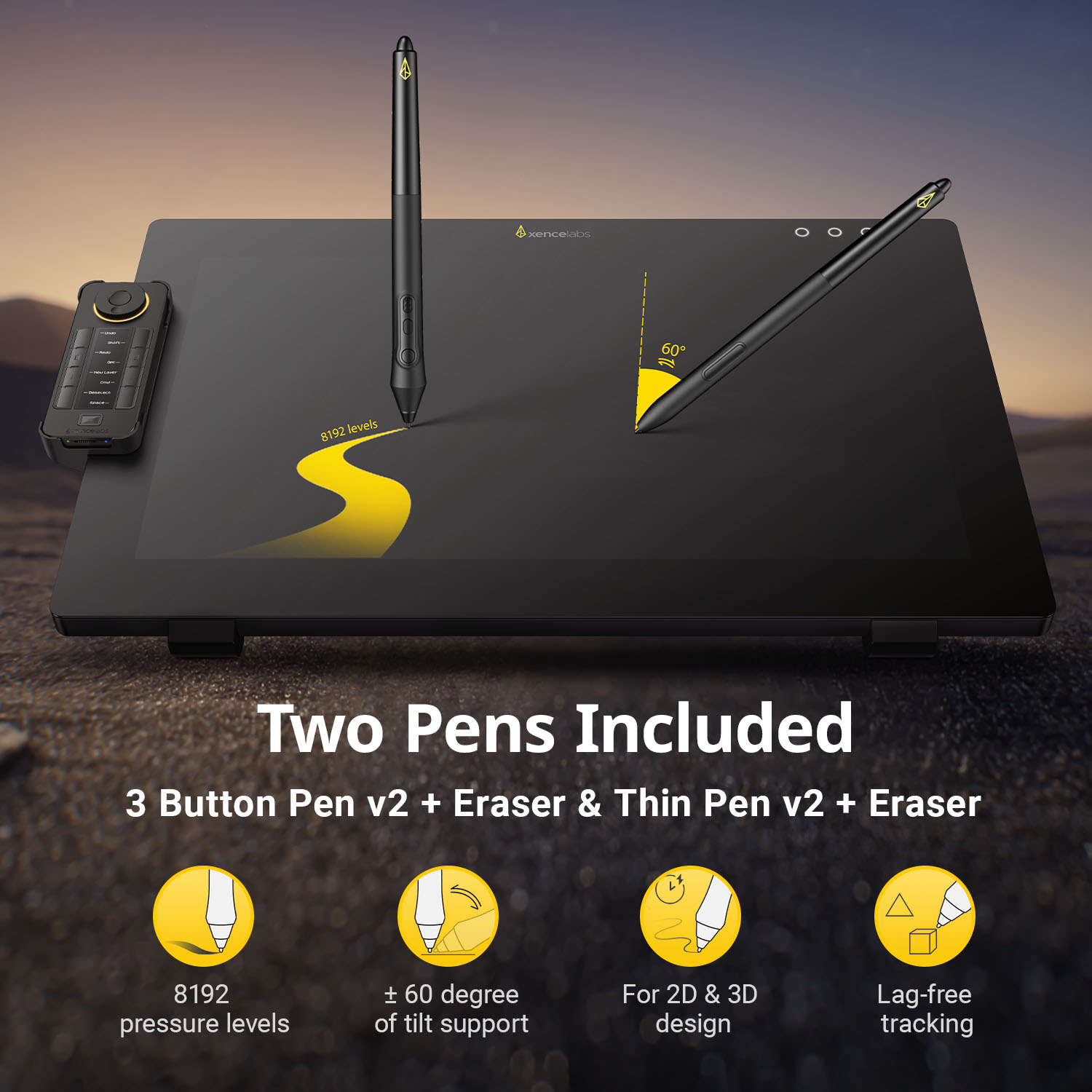

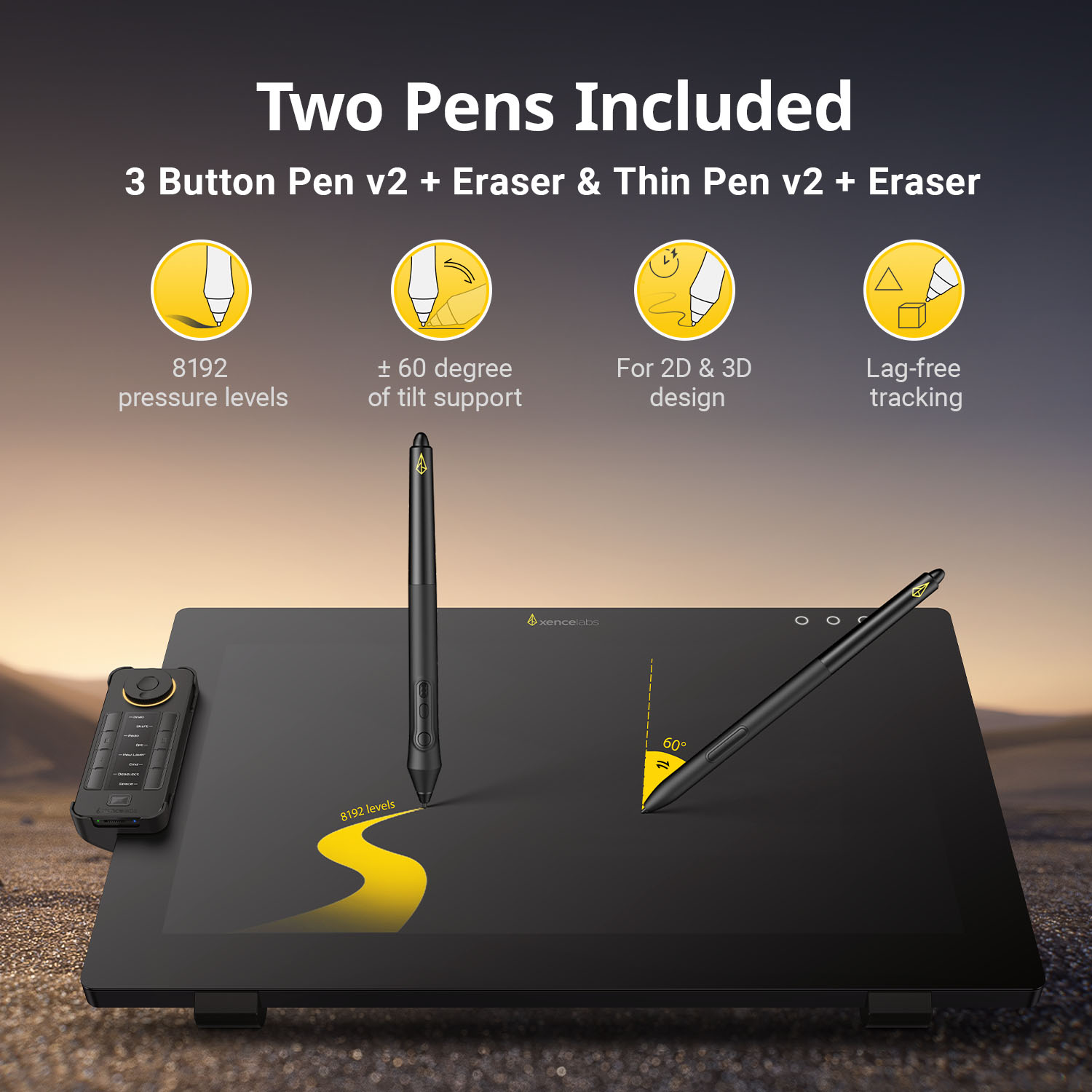

3.Two different pen sizes are provided to fit different sized hands and preferences. One pen comes with 3-buttons while the other has 2 buttons. Each have an eraser.

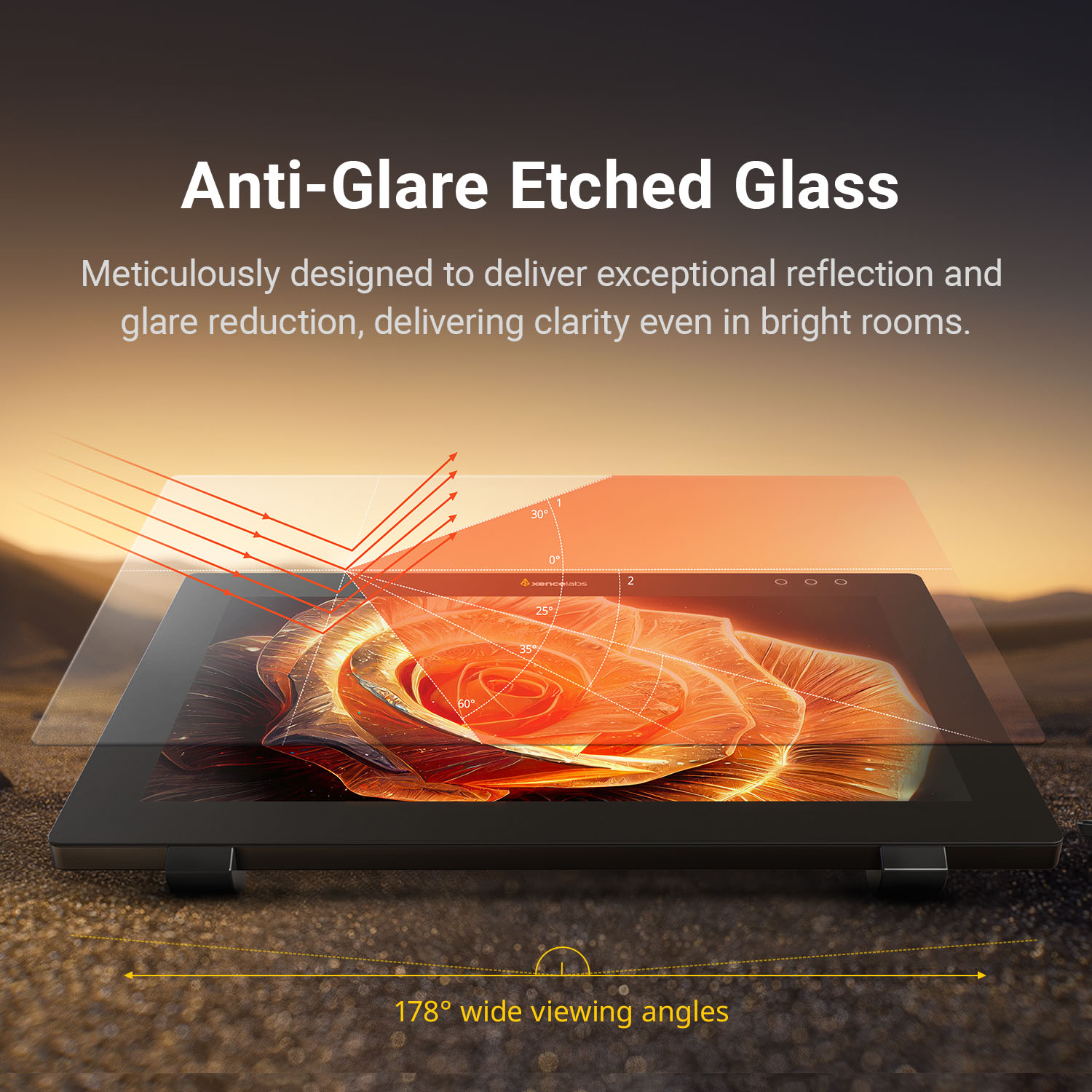

4.Virtually no screen reflections or glare, even in well-lit rooms or where there are ceiling lights

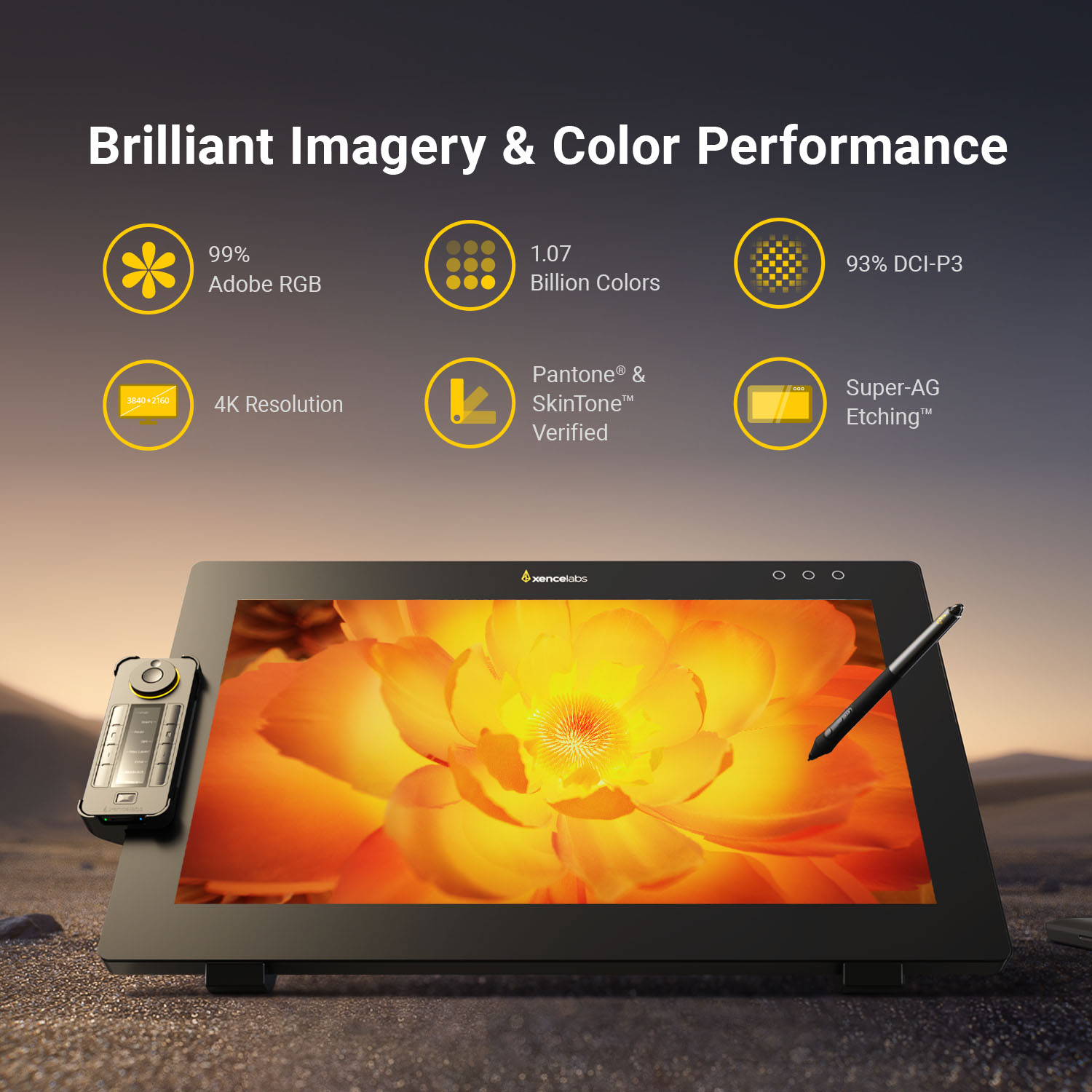

5.Excellent color performance including Pantone® & SkinTone™ validation. Delivers 1.07 billion colors.

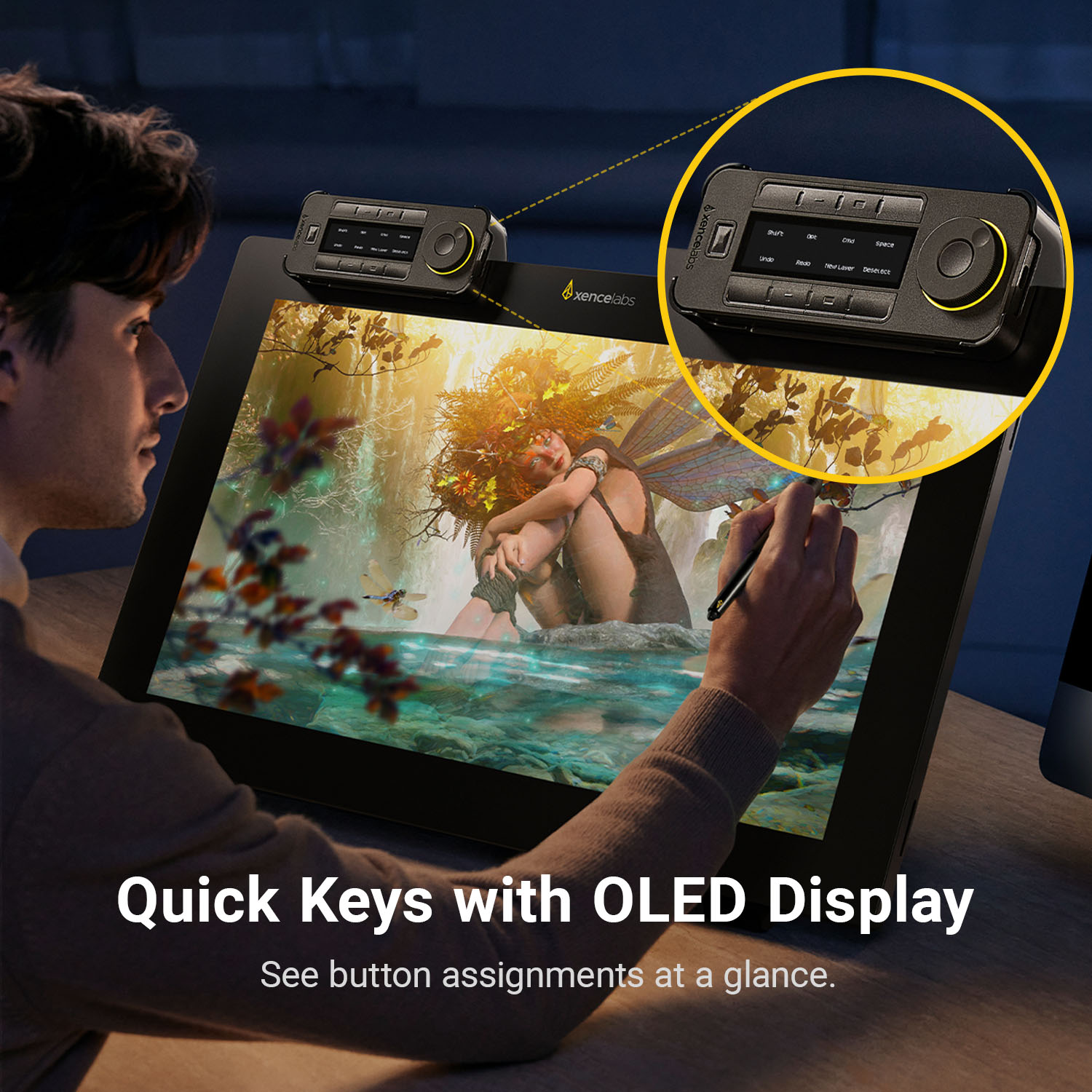

6.For improved productivity, it comes with the Xencelabs Quick Keys with OLED display and physical dial. Allows for up to 40 short-cut keys per application. Dial has 4 modes for zoom, rotation, brush size, and other functions.


PC: Windows® 7 or later (latest service pack/build)

Mac: OS X 10.12 or later (latest update)

Linux - Ubuntu 14.04 or above, Debian 9.5, CentOS 7.0 or above, RedHat 7.0 or above


USB-C port with DisplayPort Alternate Mode (UHD),

or DisplayPort (UHD) and USB-C/USB-A,

or HDMI 2.0 (UHD) and USB-C/USB-A

Internet access for driver download.



Specification
Product Type
Pen Display
Model Code
LPH2412U-A
Product Weight
6.0kg (13.3 lbs)
Product Dimensions
618.50 x 388.00 x 34.70mm (24.4 x 15.3 x 1.4 in)
Product Color
Black
Stand

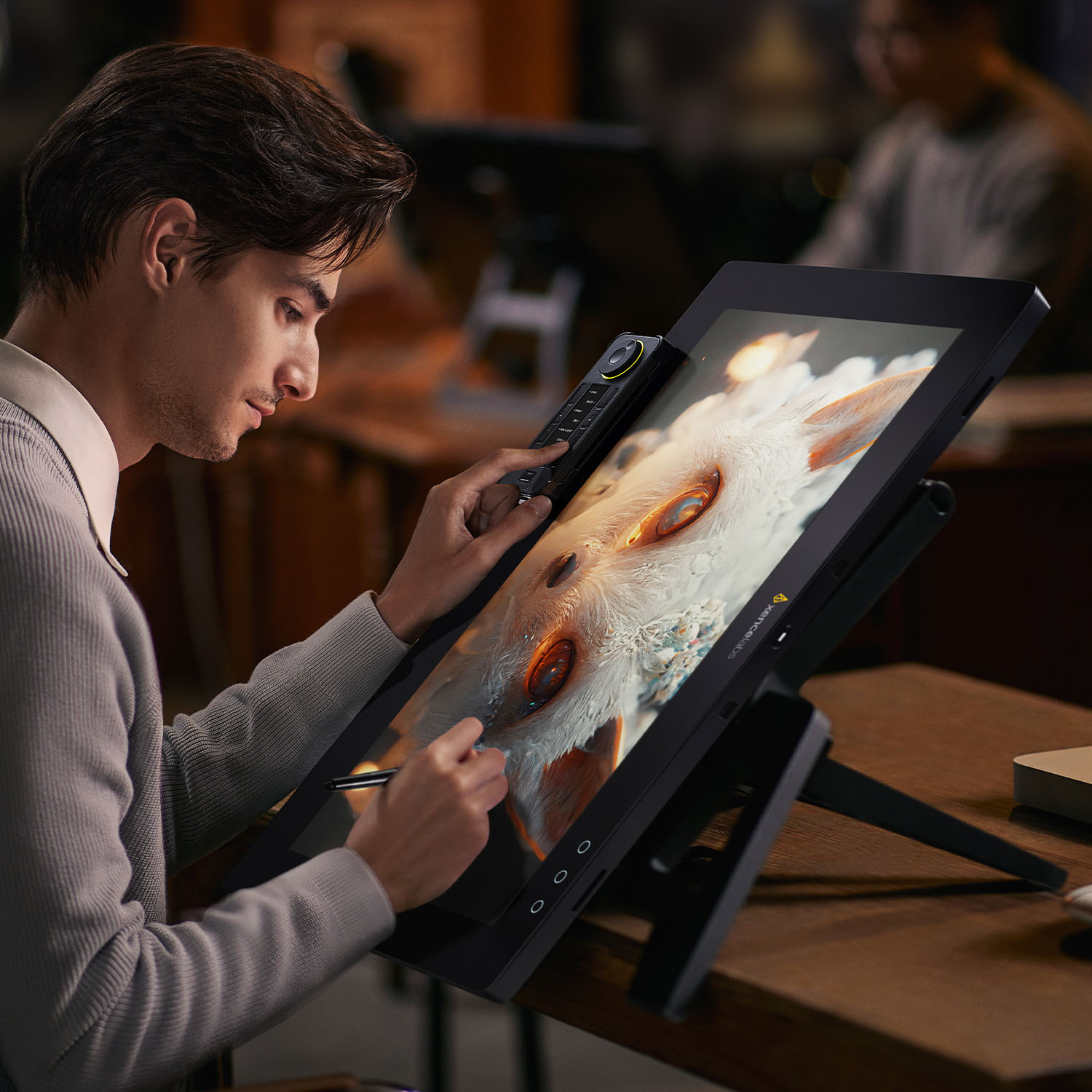

Xencelabs Tilt Stand, adjustable from 16 to 72 degrees

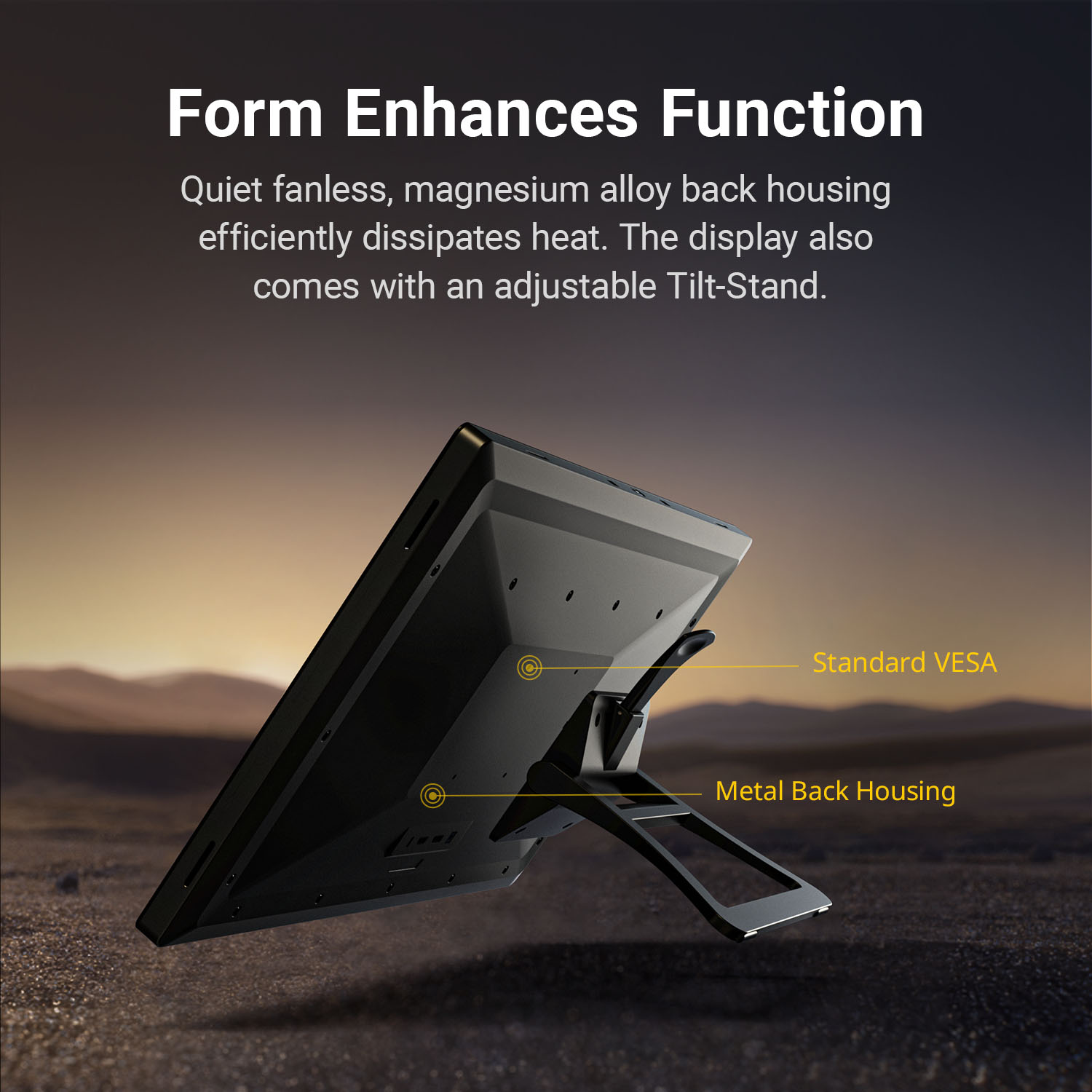

Vesa Compliant
100mm X 100mm / 3.9in X 3.9in
Quick Keys
(40 application specific customizable buttons in 5 sets of 8). Includes physical dial
Power Input Voltage
100 to 240 VAC, 50/60HZ
Power Output Voltage
12V / 5.0A
Security
Kensington® Lock Port (lock purchased separately) - MicroSaver® 2.0
Temperature
5 to 40 ℃
Screen Size (measured diagonally)
23.8 in (60.5 cm)
Active Area
527.04 × 296.46mm (20.75 x 11.7 in)
Display Resolution
3840 x 2160 pixels
Uniformity compensation
Yes
Pixel Pitch
0.13725 ×0.13725 mm
Surface
Edge-to-edge tempered glass with Super-AG etching™
Touch
No
Brightness
330cd/m2 (typ)
Displayable colors
1.07 billion colors(maximum)
Color Gamut Coverage Ratio
99% Adobe RGB (CIE 1931) (typ), 93% DCI-P3 (CIE 1931) (min) Pantone™ Validated and Pantone SkinTone™ Validated
Aspect ratio
16:9
Viewing angle
178° (89°/89°) H, (89°/89°) V(typ)
Display technology
ADS (a type of IPS)
Contrast ratio
1000:1 (typ)
Pens
3 Button Pen v2 + eraser, Thin Pen v2 + eraser
Pen Technology
EMR, pressure-sensitive, cordless, battery-free
Pen Pressure Levels
8192 levels
Pen Tilt Angle
60 degrees
Pen Resolution
5080 lpi
Pen Switches
3 side switches (3 Button pen), 2 side switches (Thin pen) plus eraser on both
Replacement Nibs
10 Nibs v2 (6 standard, 4 felt)
Ports
1 x USB C port (video and/or pen data), 1 x HDMI2.0, DisplayPort, 2 x accessory USB2.0 ports

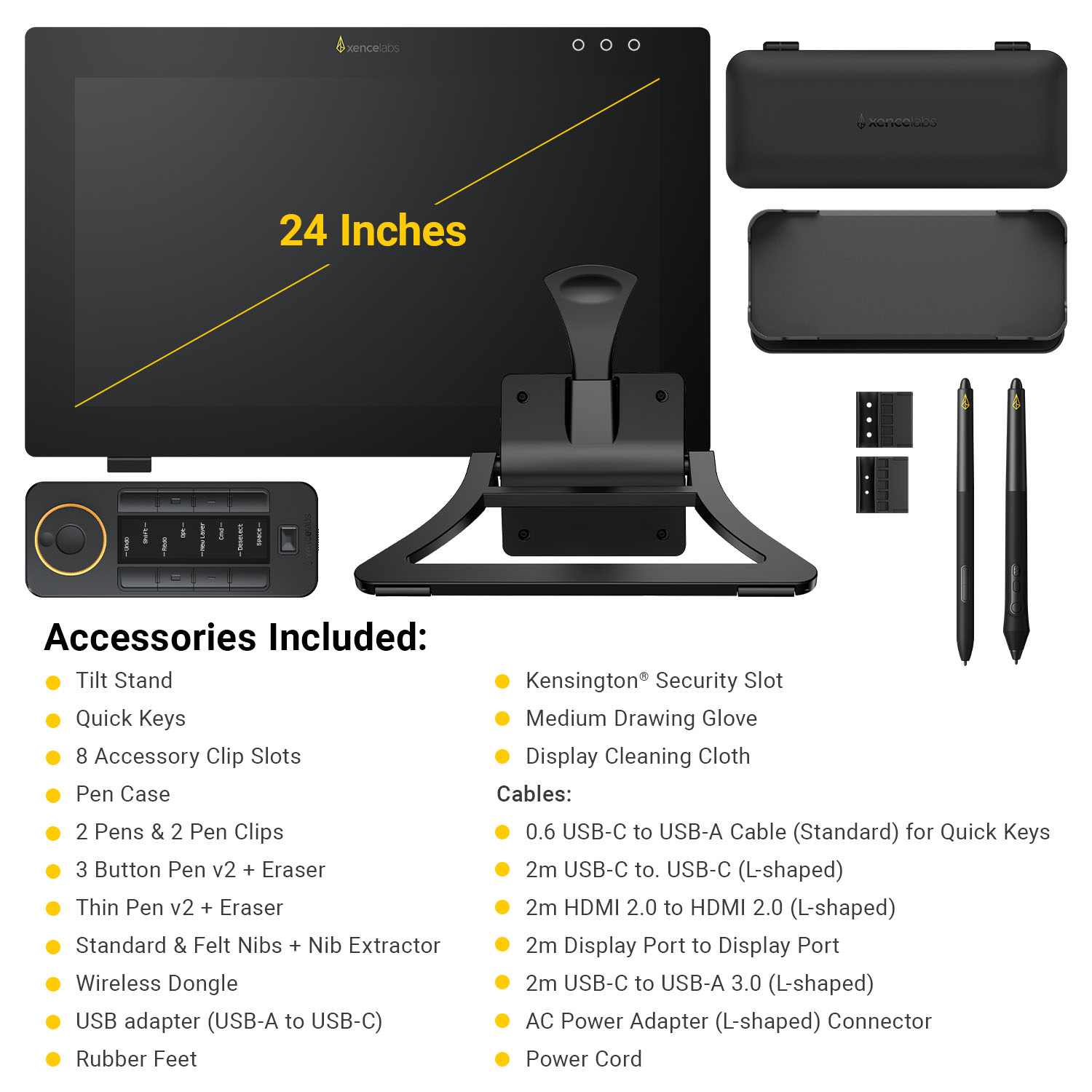

What’s in the Box
Pen Display 24 (XMPD24US)
Tilt Stand
Rubber Feet
Pen Case
3 Button Pen v2+ Eraser (XMCPH35)
Thin Pen v2 + Eraser (XMCPH36)
Wireless Dongle for Quick Keys (XMCDG)
USB-A to USB-C Adapter
Standard Nibs v2 x 6pcs / Felt Nibs v2 x 4pcs
Nib Extracting Ring
3 Button Pen Clip
Thin Pen Clip
Quick Keys (XMCQKFRES)
Quick Keys holder
Drawing Glove (Medium) (XMCLGM)
Sticker
Cleaning Cloth
2m USB-C to USB-C (L-shaped) Cable
0.6m USB-C to USB-A 3.0 (Standard) Cable
2m USB-C to USB-A 3.0 (L-shaped) Cable
2m Display Port to Display Port (L-shaped) Cable
2m HDMI 2.0 to HDMI 2.0 (L-shaped) Cable
AC Power Adapter (L-Shaped) Connector
Power Cords
Compatibility

PC: Windows® 7 or later (latest service pack/build)

Mac: OS X 10.12 or later (latest update)

Linux - Ubuntu 14.04 or above, Debian 9.5, CentOS 7.0 or above, RedHat 7.0 or above


USB-C port with DisplayPort Alternate Mode (UHD),

or DisplayPort (UHD) and USB-C/USB-A,

or HDMI 2.0 (UHD) and USB-C/USB-A

Internet access for driver download.
